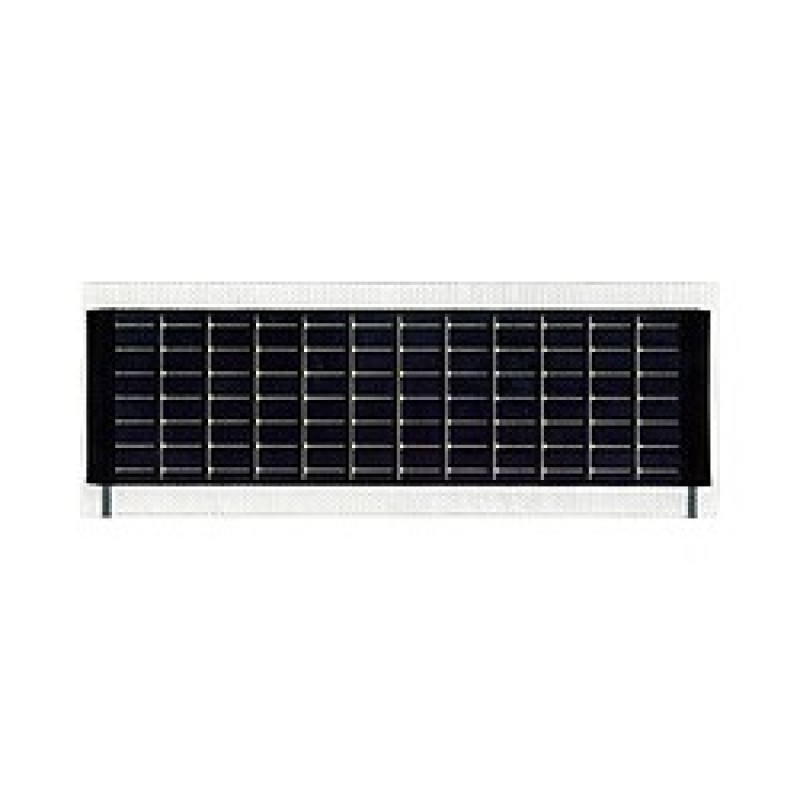

Flexible Photovoltaic Module WeatherPro 15.4V 50mA

• Operating Voltage: 15.4V
• Operating Current: 50mA
• Typical Voc (Volt at open connector): 19V
• Typical Isc (Ampere at short circuit): 60mA

This module, in the Powerfilm® WeatherPro Series is the right choice for permanent outdoor applications that are directly exposed to the elements. The especially rugged construction of the Powerfilm® modules includes a UV-stabilized surface, extra edge seal for weather protection, and tin coated copper leads that extend from the module. Coating the leads with an RTV-silicon compound can provide a tightly sealed package.

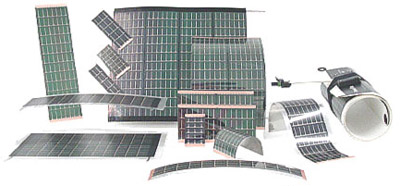

The PowerFilm® photovoltaic modules are based upon amorphous silicon technology applied to durable polymer substrate 2 mils (0.05mm) thick using a true roll-to-roll manufacturing process. Finished modules are encapsulated in a variety of materials appropriate for the application use environment.
