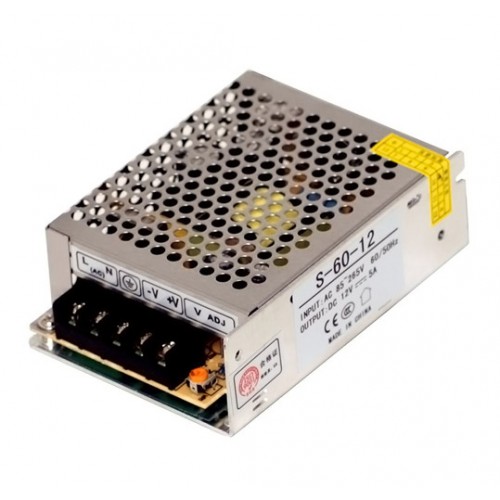

پاور سوئیچینگ 12 ولت 5 آمپر - منبع تغذیه صنعتی
طول : 11cm
عرض : 7.5cm
ارتفاع : 3.5cm
پاور سوئیچینگ 12 ولت 5 آمپر - منبع تغذیه صنعتی
طول : 11cm
عرض : 7.5cm
ارتفاع : 3.5cm
|
Protection Short circuit / overload / over voltage 100% full load burn-in test Input Voltage & Frequency Range: 85 ~ 264VAC/47 ~ 63Hz Inrush Current: 20A @ 120VAC (cold start) Output adjustment range: ± 10% (rated output voltage) Overload: 105% to 200% (rated load), since the resumption of Overvoltage:115% ~ 135% (rated output voltage) circuit protection: Self-recovery Output start time: ≤ 2S @ 120VAC ≤ 1.0S @ 230VAC Output hold time: ≥ 10mS @ 120VAC, ≥ 20mS @ 230VAC Dielectric strength Input - Output: AC1500V, 1min Input - Chassis: AC1500V, 1min Output - Chassis: DC500V, 1min Work environment: 10 ℃ ~ 50 ℃; 20% ~ 90% RH (non-condensing) safety standards: Design Reference EN/UL60950 EMC standard: reference design EN55022 Class B;EN61000-4-2/-3/-4/-5/-6/-11 |
کد محصول
BATT-POW-40
وضعیت موجودی
به زودی
