12V 600mA Wireless Charging Module
- Wireless charging module couple
- Stable power supply
- Insulation Coil
- Space-saving design
12V 600mA Wireless Charging Module
Description
- Wireless charging module couple
- Stable power supply
- Insulation Coil
- Space-saving design

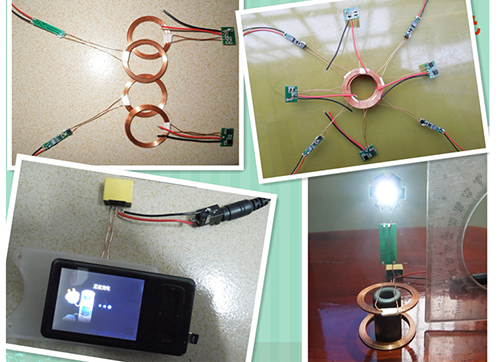

The 12V 600mA Wireless Charging Module can be applied in electronic equipments in common use for close wireless charging or power supply. Consisting of a transmitter and insulation coil, it can serve as a replacement for the wireless power supply with stable 12V output voltage and maximum 600mA output current. Its small size and insulation coil is more suitable for using in wireless projects.
.jpg)

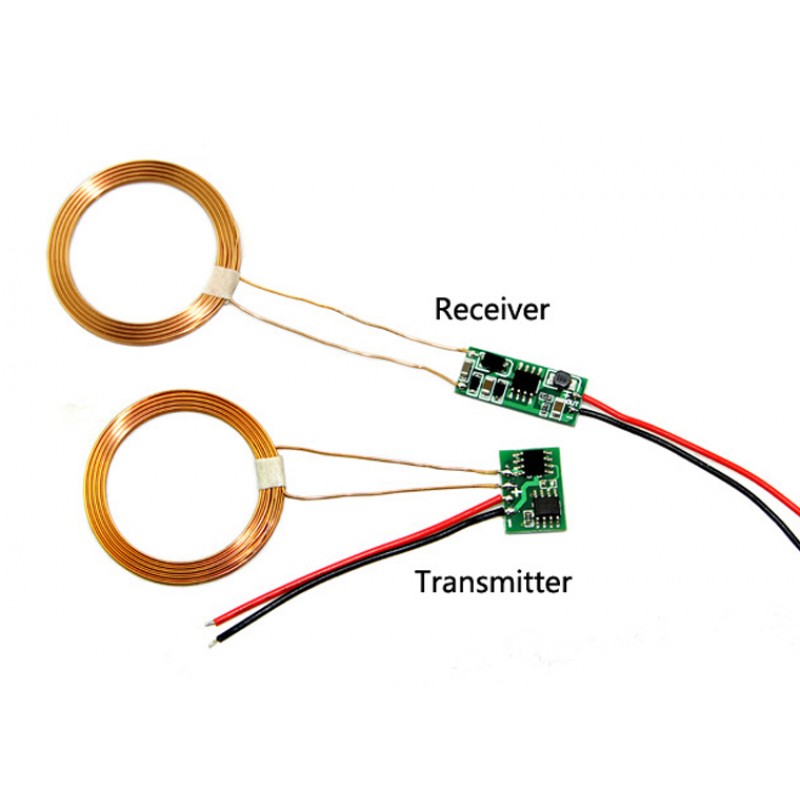

What's Included
- 1x Receiver
- 1x Transmitter
Specifications
- Input voltage: 12Vdc
- Input voltage(limits): 13.5Vdc
- Output voltage: 12Vdc
- Output current(maximum): 600mA
- Transmitter coil inductance: 30uH
- Transmit-receive distance: 1-20mm
Dimensions
- Transmitter : 12mm x 7mm x 1mm
- Receiver: 15mm x 10mm x 1mm
- Coil diameter: 38mm
- Coil height: 2mm
