برد دیسکاوری STM32F746G

Discovery kit with STM32F746NG MCU

برد دیسکاوری STM32F746G



STM32F746G-DISCO 32F746GDISCOVERY

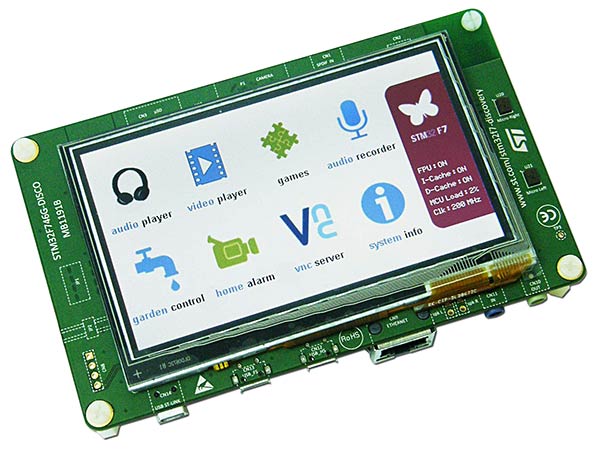

The STM32F746G-DISCO discovery board (32F746GDISCOVERY) is a complete demonstration and development platform for STMicroelectronics ARM® Cortex®-M7 core-based STM32F746NGH6 microcontroller. This microcontroller features four I2Cs, six SPIs with three multiplexed simplex I2S, SDMMC, four USARTs, four UARTs, two CANs, three 12-bit ADCs, two 12-bit DACs, two SAIs, 8- to 14-bit digital camera module interface, internal 320+16+4 KB SRAM and 1 MB Flash memory, USB HS OTG, USB FS OTG, Ethernet MAC, FMC interface, Quad-SPI interface, SWD debugging support. This discovery board offers everything required for users to get started quickly and develop applications easily.
The full range of hardware features on the board helps to evaluate almost all peripherals (USB OTG HS, USB OTG FS, Ethernet 10/100Mb, MicroSD Card, USART, SAI Audio DAC stereo with audio jack input and output, MEMS digital microphones, SDRAM, Quad-SPI Flash memory, 4.3-inch color LCD-TFT with a capacitive multi-touch panel, SPDIF RCA input, etc.) and develop your own applications. Arduino Uno V3 connectors make it possible to easily connect extension shields or a daughterboard for your specific application. The integrated ST-LINK/V2-1 provides an embedded in-circuit debugger and programmer for the STM32 MCU.

Key Features

    STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
    On-board ST-LINK/V2-1 supporting USB re-enumeration capability
    Mbed-enabled (mbed.org)
    USB functions: virtual COM port, mass storage, debug port
    4.3-inch 480x272 color LCD-TFT with capacitive touch screen
    Camera connector
    SAI audio codec
    Audio line in and line out jack
    Stereo speaker outputs
    Two ST MEMS microphones
    SPDIF RCA input connector
    Two pushbuttons (user and reset)
    128-Mbit Quad-SPI Flash memory
    128-Mbit SDRAM (64 Mbits accessible)
    Connector for microSD card
    RF-EEPROM daughterboard connector
    USB OTG HS with Micro-AB connectors
    USB OTG FS with Micro-AB connectors
    Ethernet connector compliant with IEEE-802.3-2002
    Five power supply options:
    ST LINK/V2-1
    USB FS connector
    USB HS connector
    VIN from Arduino connector
    External 5 V from connector
    Power supply output for external applications: 3.3 V or 5 V
    Arduino Uno V3 connectors
    Comprehensive free software including a variety of examples, part of STM32Cube package
    Supported by a wide choice of integrated development environments
