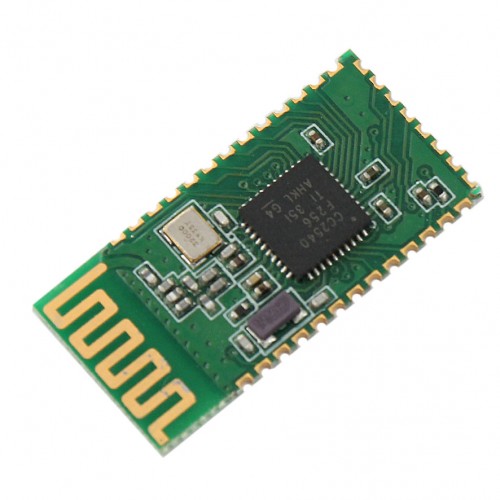

ماژول بلوتوث سریال MBTV4 - بلوتوث ورژن 4
BT Version: Bluetooth Specification V4.0 BLE
Send and receive no bytes limit.
Working frequency: 2.4GHz ISM band
Modulation method: GFSK(Gaussian Frequency Shift Keying)
ماژول بلوتوث سریال MBTV4 - بلوتوث ورژن 4
Product parameters
BT Version: Bluetooth Specification V4.0 BLE
Send and receive no bytes limit.
Working frequency: 2.4GHz ISM band
Modulation method: GFSK(Gaussian Frequency Shift Keying)
RF Power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT+POWE.
Speed: Asynchronous: 6K Bytes
Synchronous: 6K Bytes
Security: Authentication and encryption
Service: Central & Peripheral UUID FFE0,FFE1
Power: +3.3VDC 50mA
Long range: Open space have 100 Meters with iphone4s
Power: In sleep mode 400uA~1.5mA, Active mode 8.5mA.
Working temperature:–5 ~ +65 Centigrade
Size: HM- 10 26.9mm x 13mm x 2.2 mm; HM-11 18*13.5*2.2mm
Product overview
Thanks for you choose our products.
HM Bluetooth module use CSR BlueCore or TI CC2540, Master and slave roles in one, transmission version and remote control version and PIO state acquisition functions in one, Support the AT command modify module parameters, Convenient and flexible.
Transmission version can be used to transmit data between two Bluetooth devices.
Remote Control version can be used to Control PIO ports output high or low level without any other MCU.
The PIO state acquisition version can be used to acquisition PIO ports state without any other MUC. (Only support Bluetooth V2.1)
HM-01, HM-02, HM-03, HM-04, HM-05, HM-06, HM-07, HM-08, HM-09 is Bluetooth V2.1 version. Use CSR Chip.
HM-10, HM-11, HM-12 is Bluetooth V4.0 BLE version. Use TI Chip.
HM-01, HM-02, HM-09, HM-10 have same size and same pins.
HM-05, HM-06, HM-07, HM-11 have same size and same pins.
