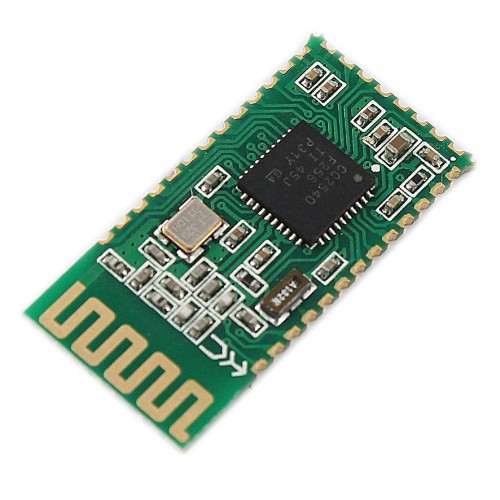

ماژول بلوتوث HC-08 - بلوتوث سریال ورژن 4

ماژول بلوتوث HC-08 - بلوتوث سریال ورژن 4

Technical Data:
TXD: serial transmit, 3.3V TTL level.
RXD: serial receiver, 3.3V TTL level.
CTS: serial flow control, is not supported.
RTS: serial flow control, is not supported.
DC: simulation, burning clock pin.
DD: simulation, data burning feet.
RST: reset pin module requires low level of not less than 5ms reset.
VCC: module power foot, requiring DC 3.3V power supply current is not less than 100mA.
GND: module common ground.
LED: LEDs module output pin, high output, series resistor connected LED.
Slave bright one second every two seconds. Once connected, LED lit.
KEY:. Input pin, internal pulldown This foot high, clear the record for the host address from the machine.
