ماژول وایفای TI-CC3200 با توان مصرفی کم و آنتن داخلی

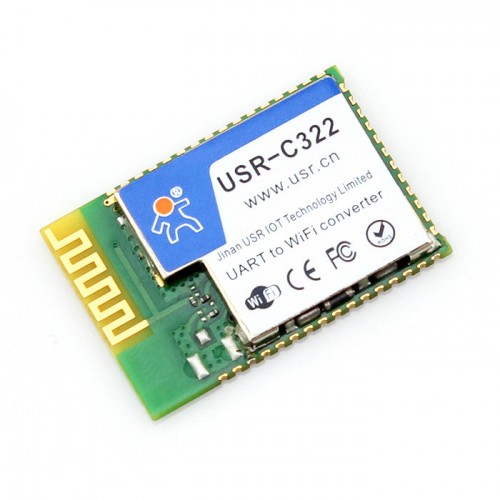

USR-C322 is a wifi module released by USR IOT,which has the features of minisize,low power and industry-grade. The hardware of USR-C322 wifi module integrates MAC,baseband chip, RF transceiver unit and power amplifier.
ماژول وایفای TI-CC3200 با توان مصرفی کم و آنتن داخلی
Description:
USR-C322 is a wifi module released by USR IOT,which has the features of minisize,low power and industry-grade. The hardware of USR-C322 wifi module integrates MAC,baseband chip, RF transceiver unit and power amplifier.
USR-C322 wifi module adopts CC3200 chip of TI,which has industrial ARM Cortex-M4 core and ultra-low power operation mechanism.And it supports WiFi protocol and TCP/IP protocol.User can achieve the function of UART devices connecting to Internet with simple configuration.
Product Features:
TI CC3200 Chip：TI chips;quality and delivery are guaranteed;based on ARM Cortex-M4 kernel;running frequency of 80 MHZ
Ultra-low power: Working : Min 3.5mA; Deep Sleep : Min 25uA
Open SDK：Support secondary development according to TI SDK and "USR" encapsulated SDK (C322 SDK is available in May,2015.)
Minisize: 18.22*26.65*2.8(mm)
High-speed UART：Max baud rate of 3M bps
Simplelink：one key access to WiFi
Double serials : two UARTs
Three links : three TCP links
Two encryption communication methods : PC1 Encrypt,SSL encryption submission
More functions : custom webpage,websocket,httpd client
No data loss
C322 has double serials and three network links.
UART 0 supports two network links and one link supports TCP Server;UART 1 supports one network link.
Application Example:
1.Communication with two servers:two UARTs connect with two different servers and receive different commands for the servers;
2.Data backup and remote debugging:serial data sent to the two servers by using two network links of UART 0;
3.TCP Server and TCP Client can work at the same time;
Function and Detail:
High-speed Baud Rate : serial baud rate up to 3Mbps; have high speed in large amount of data transmission applications like WIFI printer,WIFI serial camera and WIFI high-speed data acquisition.
Onekey WIFI Connection : support two fast networking ways--"SimpleLink" and "UsrLink";perfectly solve problems of complex networking operation in smart home applications.
RegistryPackage Function : send registry data package immediately after TCP connection,which is convenient for server identifying and processing;registry data package supports custom ID and MAC.
Baud Rate Sync : support using USR Visual Serial Software（USR-VCOM）.
