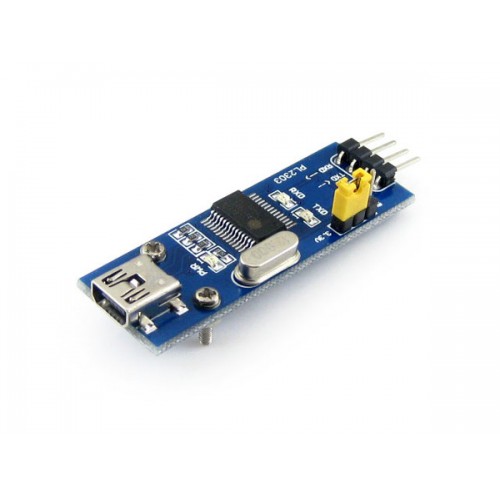

ماژول USB به TTL سریال PL2303TA با رابط میکرو USB - پشتیبانی از ویندوز 10

ماژول USB به TTL سریال PL2303TA با رابط میکرو USB - پشتیبانی از ویندوز 10

Product Features:
Using PL2303TA ( latest model , compatible PL2303HXA)
Support windows 10
Supports three power modes : 5V external power supply ; 3.3V external power supply ; externally powered ( requires 3.3V-5V)
With 3 LED: TXD LED, RXD LED, POWER LED

Applications :
RS-232 to USB upgrade traditional devices
USB to RS-232 serial adapter

Instructions for use: ( to access the MCU for example )
VCCIO: Output 3.3V or 5V ( USB-powered module jump , jumper shall 3.3V or 5V)
GND: GND connection
TXD: pick MCU.RX ( signal flow : MCU.RX << PL2303 << PC.TX)
RXD: pick MCU.TX ( signal flow : MCU.TX >> PL2303 >> PC.RX)
