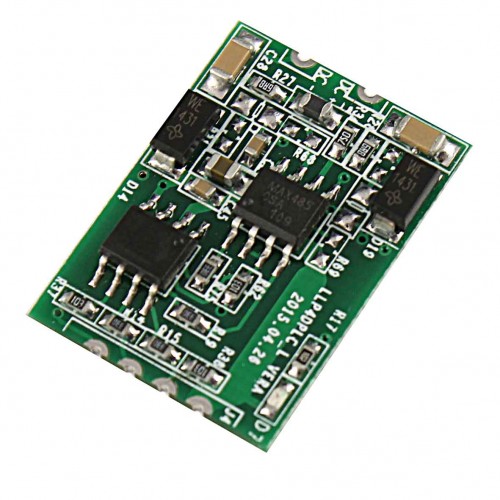

ماژول انتقال داده سریال بر روی خطوط برق دی سی DPLC-L با سرعت 57.6Kbps

ماژول انتقال داده سریال بر روی خطوط برق دی سی DPLC-L با سرعت 57.6Kbps

Suitable for DC power supply line (12 ~ 48V)
5V single power supply module total power consumption <0.2W
Serial port communication speed, up to 57.6Kbps
Maximum transmission distance up to 600 meters
Strong drive capability, maximum achievable over 40 co-bus communication load
Module size: 1.8 × 2.5 × 0.5cm
The module uses an external pin "stamp bore" design, user-friendly SMT soldering

DPLC carrier module can be widely used in intelligent buildings, industrial control systems, the direct use of DC power bus, the main control node and remote communication between devices from the terminal node. Master and slave, are powered directly by the DC power supply line; at the same time, master and slave devices built DPLC carrier module, the direct use of wire communications to achieve a significant reduction in cable costs.

Note : This module is serial TTL level, can not and DB9 serial port PC (RS232 level) direct docking test. When using computers to test this module carrier communication, the proposed purchase of two USB-> TTL serial module, can easily be docking test.
