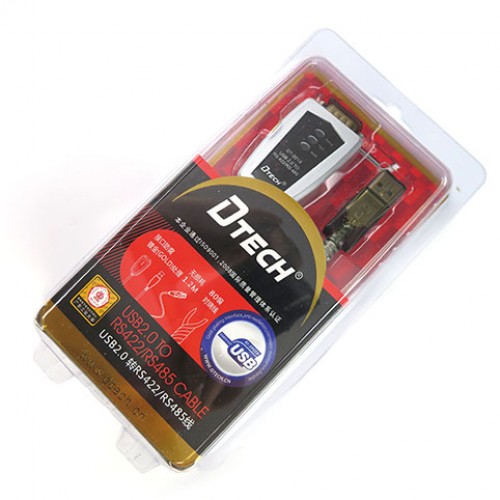

کابل مبدل USB به سریال RS422/RS485 مدل DT-5019

کابل مبدل USB به سریال RS422/RS485 مدل DT-5019

USB to RS-485/422 industrial intelligent converter; no power supply needed, plug-and-play
USB485 is a kind of USB to RS-485/422 industrial intelligent converter. It is the best solution for the communication between USB and RS-485/422. Compared with RS-232 to RS-485/422 converter, USB to RS-485/422 converter has many advantages.

Features:
Small volume, easy installation
No power supply needed, plug and play
Single chip(ASIC) USB port to serial port communication
Transmit distance reach up to 1800M at the rate of 115200bps.
Automatic send data control, auto distinguish and sense direction adopt data transfer
Auto sense serial signal rate, zero delay automatic transmit

Specifications:
USB Compliance: USB1.1/2.0 compliant
Connector: USB type A
Speed: 12Mbps(Full-speed USB)
Serial interface
Numbers of ports: 1
Serial standards: RS485/422
Connector: DB9 male
Serial Line protection
ESD Protection: 15KV embedded

1) Standard: USB1.1, EIA RS-485, RS-422 standard
2) USB signal: VCC, DATA+, DATA-, GND, FG
3) RS-485 signal: D+, D, GND
4) RS-422 signal: R+, R-, T+, T-, GND
5) Working format: asynchronism, point to point or multi-point, 2 lines half duplex
6) Direction: automatic send data control - no software drivers needs
7) Band rate: 300 -115,200bps, automatic test signal rate
8) Loading: support 32 port loop environment (or handtailor 128 point)
9) Transmission: RS-485/422 side 1,200m (9,600bps), USB side 5m
10) Protection: 600W surge protection, ±15KV static electricity protection
11) Interface type: USB side type A interface female, RS-485/422 side DB-9 male or 5 terminal blocks
12) Working temperature: -20 to 60°C
13) Storage temperature: -25 to 85°C
14) Relative humidity: 5% to 95%
15) Input powered: no external power supply needed
16) Consumption: static consumption less than 80mA, dynamic average consumption less than 150mA

Performance
Baud rate: 300bps to 230400bps
Serial Communication Parameters
Data Bites: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
FIFO: 128bytes
Serial Signals
RS-485: D+,D-,GND
RS-422: T+, R+, T-, R-,GND
Loading: 32 nodes or custom 128 nodes
Transmission: RS-485/422 1200M(96000bps), USB 5M

Driver Support
Operating System: Support Windows98/ME/2000/XP/Vista/7,Linux,MAC,Wince
