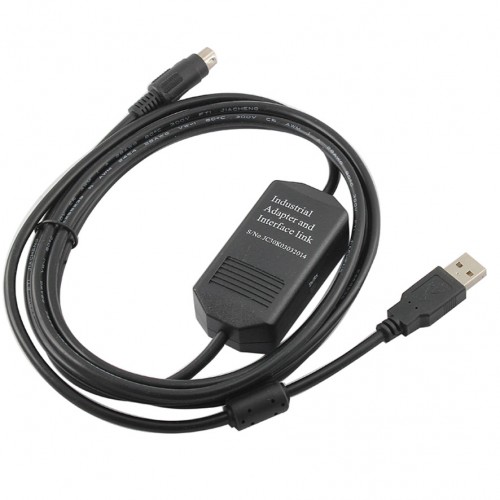

مبدل یو اس بی به - RS422 تبدیل usb to RS422 Adapter for melsec FX PLC
USB-SC09-fx is a serial connection and RS422 signal conversion through the USB interface cable programming, in the driver controls the computer running the simulation computer's USB interface into the traditional serial port (commonly known as the COM port) to use existing The variety of programming software, communications software and monitoring software and other applications
مبدل یو اس بی به - RS422 تبدیل usb to RS422 Adapter for melsec FX PLC
USB-SC09-fx is a serial connection and RS422 signal conversion through the USB interface cable programming, in the driver controls the computer running the simulation computer's USB interface into the traditional serial port (commonly known as the COM port) to use existing The variety of programming software, communications software and monitoring software and other applications. Working power cable from the USB port, no longer by a two-color light emitting diode PLC programming port power supply, the converter box indicates data transceiver state.
USB-SC09-FX Mitsubishi FX programming cable is suitable for the full range of PLCLC, can replace FX-232AW communication module, supports maximum communication distance of two kilometers.
Features and technical specifications:
Support USB-SC09-FX operating system: Windows7 / Windows2000 / Windows XP (WinNT4 / 95/98 / Me / DOS does not support, windows7 system support piracy problems that may occur)
Support USB-SC09-FX programming software version: FXGP / WIN V1.0, GPP V4.0, GX Developer V7.0 and above
Fully compatible with USB V1.1 and USB CDC V1.1 specification
USB bus powered, with current consumption of 50mA
Baud Rate: 300bps ~ 1Mbps standard automatic baud rate adaptation
Support UART data format: data bits: 7, 8, stop bits: 1, 2, Parity: odd / even / no parity
Support long-distance communications, the largest communications distance 2 km (9600bps time)
Each PC only supports a USB programming cable
Working temperature: -20 ~ +75 ℃
Cable length: 3 m, color: yellow industrial grade
Instructions:
USB-SC09-FX programming cable need to install USB device driver to use, these drivers are included on the CD with the product sale, please see the instructions to install the driver documentation on the disc, not repeat them here.
After driver installation is complete, will appear in the Windows Device Manager USB-SC09 programming cable corresponding COM port, simply select the COM port in the programming software or other application software and keep other communication parameters using the default settings, then down using the same traditional RS232 port programming cable are identical.
NOTE: You can not use RS422 DB25M end plug and MD8M plug.
