پنل تاچ خازنی ۷ اینچ LattePanda
سایر تصاویر محصول

پنل تاچ خازنی ۷ اینچ LattePanda

پنل تاچ خازنی ۷ اینچ LattePanda

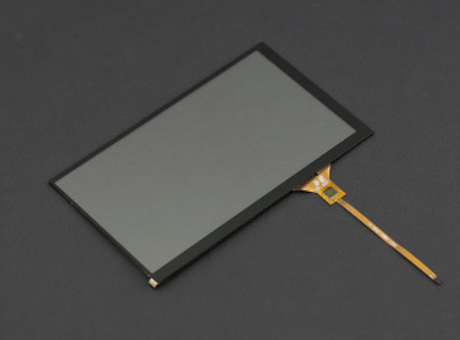

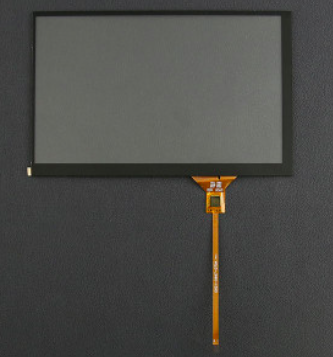

This is a capacitive touch panel overlay for your LattePanda single board computer
Overlay the adhesive panel on your LattePanda 7" display (not included), connect the FPC connector and power the board. This gives you a high-quality user interface for your project!




Note: We have recently released a new batch of touch panels that have a higher sensitivity. Drivers on boards manufactured after May 2016 will include the drivers pre-installed on the system.



If you have purchased an older version LattePanda but want to use the newer capacitive touch panel, you can download the V1.1 drivers below and manually install them.
PLEASE NOTE: “install.bat” must be run as an administrator to update the driver correctly.


What is a LattePanda?

LattePanda is a complete Windows 10 single board computer! It includes everything a regular PC has and can do anything that a regular PC does. It is compatible with almost every gadget you know: printers, joysticks, cameras and more. Any peripherals that work on your PC will work on a LattePanda. A LattePanda comes pre-installed with a full, pre-activated version of Windows 10, where you can install powerful tools such as Visual Studio, NodeJS, Java, Processing, and more. Using existing APIs, you can develop your own software and hardware projects on a LattePanda as you would on a normal PC - C#, Javascript, Ruby and so on. Say goodbye to your bulky laptop!

SPECIFICATION

  • Capacitive Touch Control
  • Transmittance:85%
  • Surface Hardness: 6H
  • Response Time: ≤16ms
  • Tapping Durability: 200,000,000 times
  • Supports LattePanda
  • 10cm FPC Extension Cable
  • Dimensions: 164.0mm x 96.0mm

DOCUMENTS

نظرات کاربران درباره پنل تاچ خازنی ۷ اینچ LattePanda

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد پنل تاچ خازنی ۷ اینچ LattePanda نظر می دهد.

ارسال نظر درباره پنل تاچ خازنی ۷ اینچ LattePanda

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha
کد محصول LCD-57
وضعیت موجودی نا موجود
