برد پردازنده دو هسته ای TMDSDOCK28379D controlCARD for C2000 Real time control development kits دارای JTAG داخلی

Description

TMDSDOCK28379D is a HSEC180 controlCARD based evaluation and development tool for the C2000™ Delfino™ F2837x and Piccolo F2807x series of microcontroller products. The Docking Station provides power to the controlCARD and has a bread-board area for prototyping. Access to the key device signals are available using a series of header pins.

Features

Hardware Features

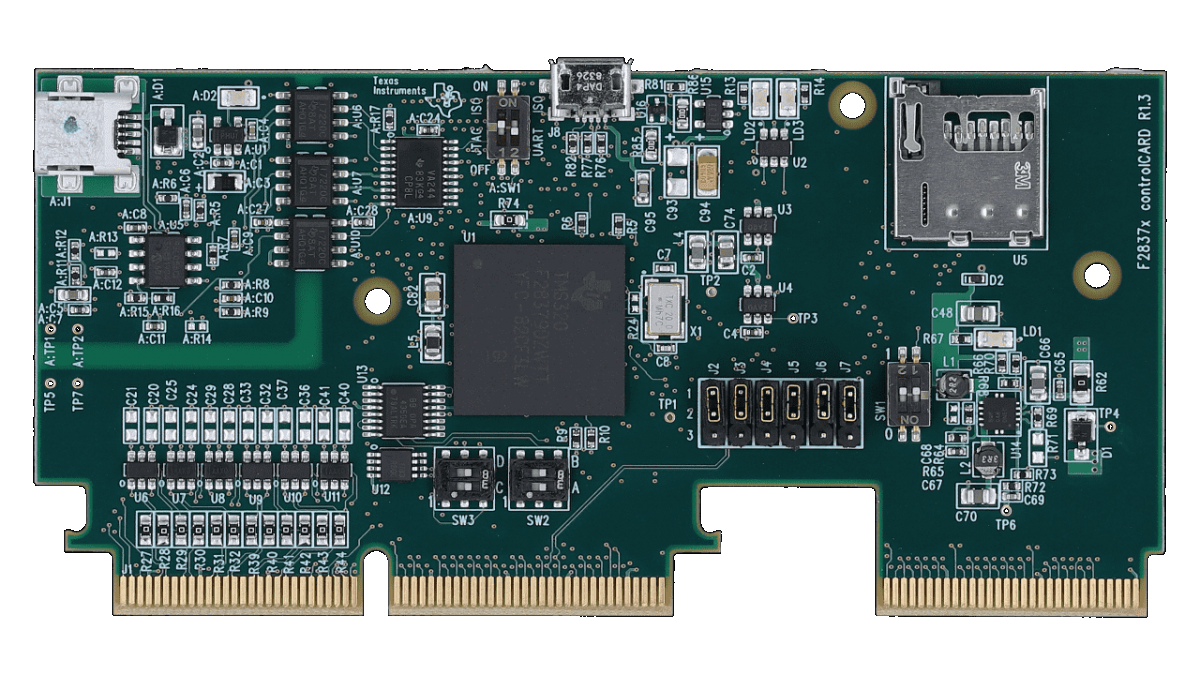

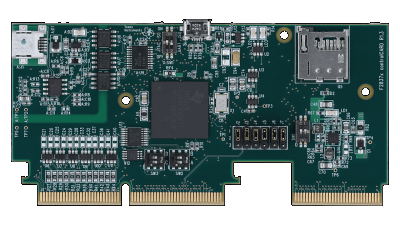

TMDSCNCD28379D: TMS320F28379D HSEC180 based controlCARD
- Isolated XDS100v2 USB-to-JTAG Debug Probe enables real-time in-system programming and debugging

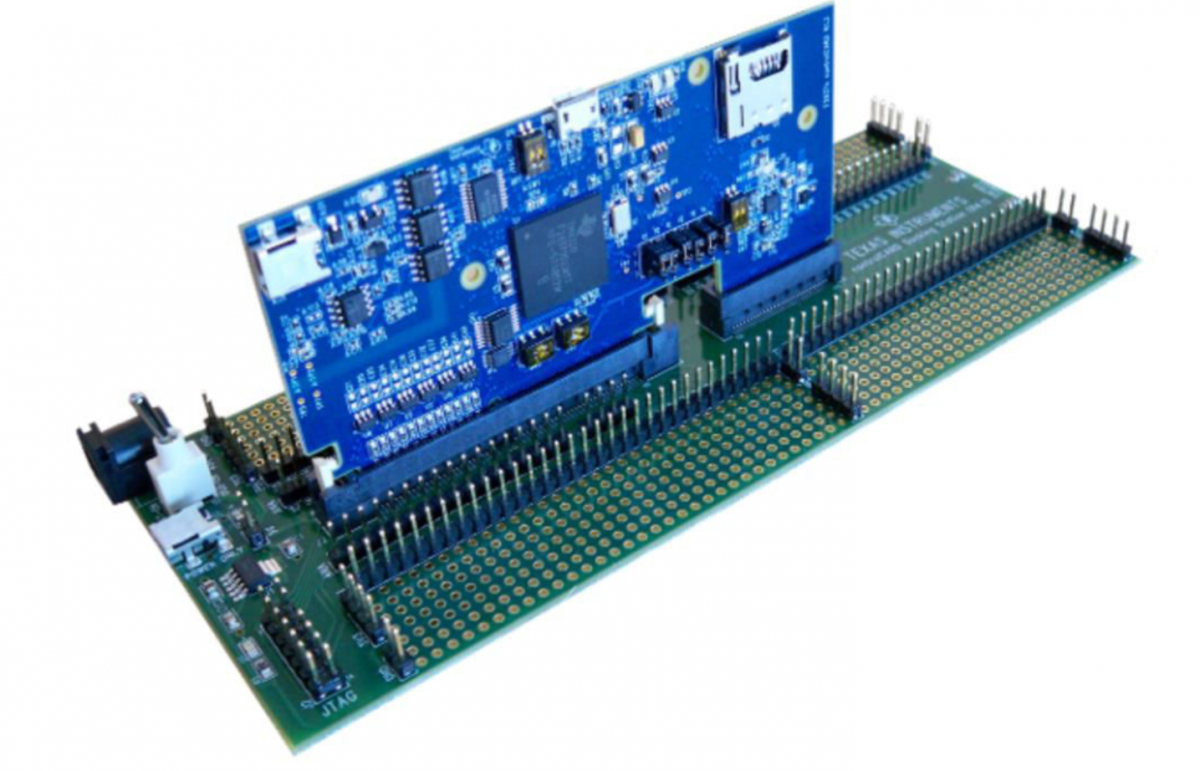

Bread-board like baseboard with HSEC180 controlCARD female connector
- Header pin access to key MCU signals
- Breadboard area for customizable routing/prototyping
- Board power can be provided by the provided USB cable or a 5V barrel supply
Hardware Files are in C2000Ware at boards\controlCARDs\TMDSCNCD28379D

Software Features

Free download of Code Composer Studio IDE
Free download of C2000Ware for device drivers and example projects
DesignDRIVE and Position Manager capable
MathWorks Embedded Target Support
solidThinking Embed Support

Get Started

Install controlSUITE
Install Code Composer Studio IDE
Open the Quick Start guide: Delfino TMS320F28379D controlCARD R1.3
View and run the 1-day On-Line Workshop
View and run the Multi-day On-Line Workshop
Ask questions on the TI C2000 e2e forum

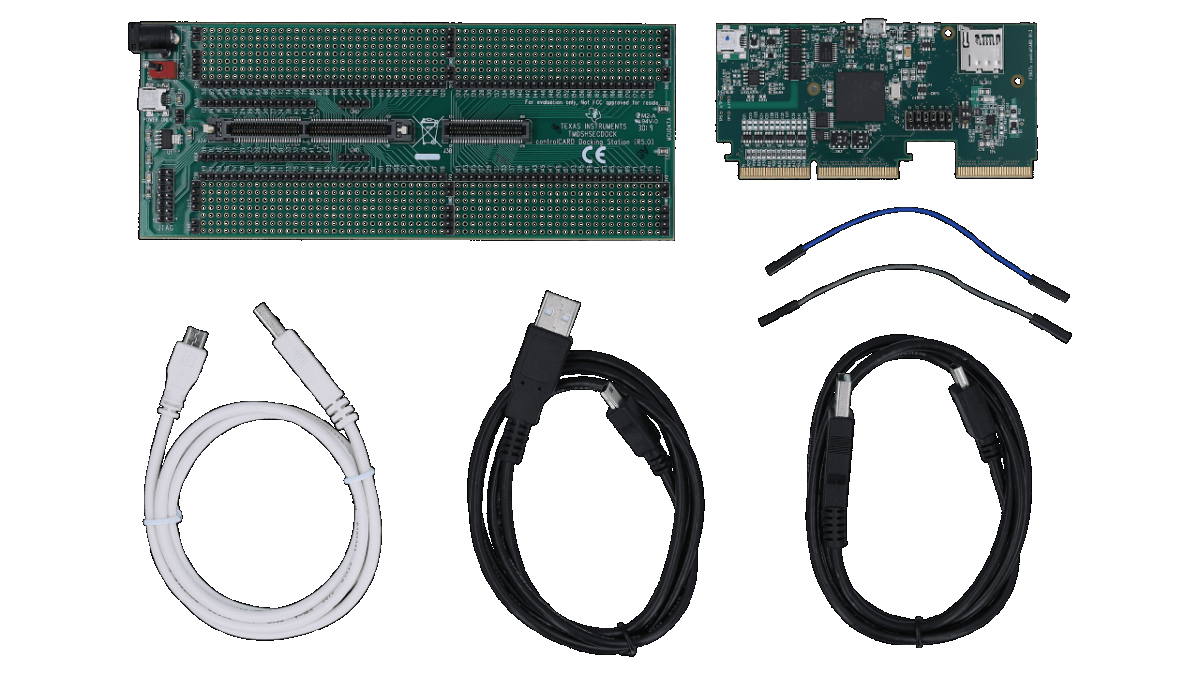

What's included:

Delfino F28379D controlCARD
HSEC180 Docking Station baseboard
2 x USB Cable - A Male to Mini B Male
USB Cable - A Male to Micro B Male
