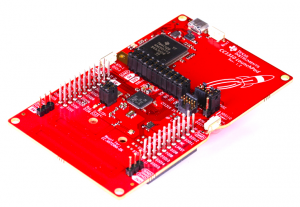

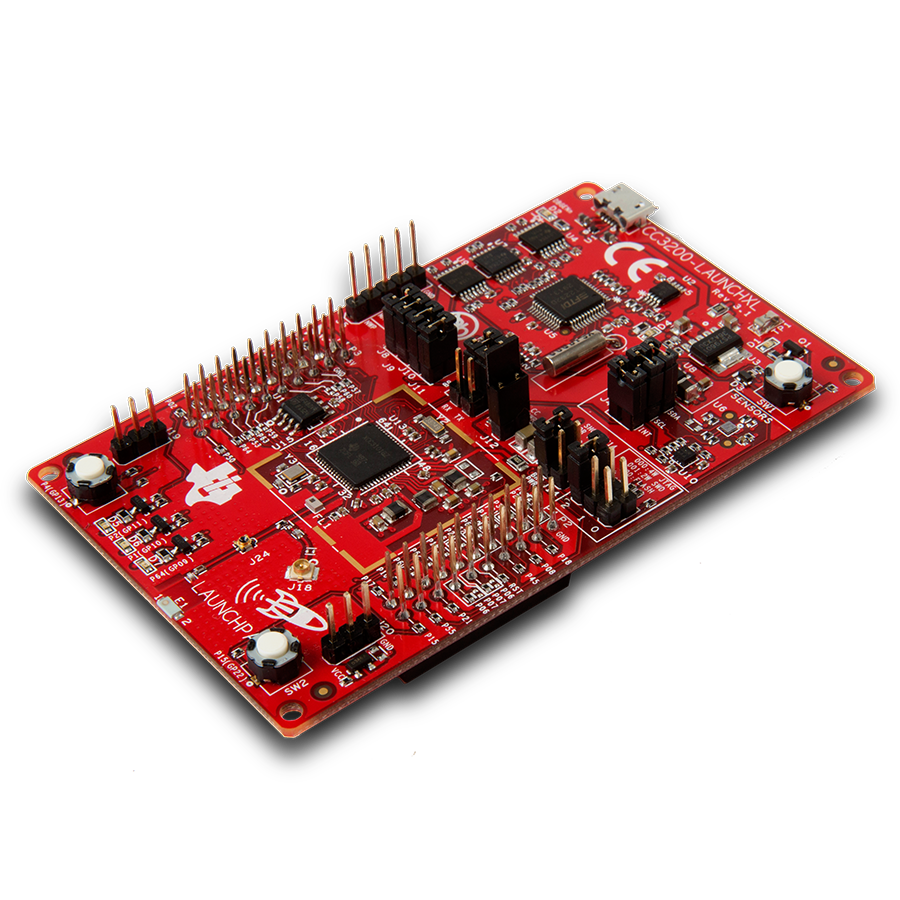

CC3200-LAUNCHXL برد لانچپد وایرلس

CC3200-LAUNCHXL برد لانچپد وایرلس

On-board Emulation

The CC3200 SimpleLink Wi-Fi LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.

BoosterPack Compatibility

Two dual-gender, 20-pin stackable headers provide great connection options out of the box. These 40 pins allow you to add support for displays, sensors and other capabilities to your projects.

What's Included?

The CC3200 LaunchPad includes everything you need to get started with Wi-Fi development!

• CC3200-LAUNCHXL LaunchPad
• Mini USB Cable
• Online quick start guide

Device Features

• 802.11 b/g/n Station and Access Point with fully integrated radio, baseband, and MAC
• Single-chip Wi-Fi MCU: Wi-Fi network processor + Arm® Cortex®-M4 MCU integrated into one chip including RF reference design
• Embedded TCP/IP stack and Wi-Fi security transparent to the application MCU user
• Internet protocols including mDNS, DNS, SSL/TLS in ROM + web server (HTTP) in Flash. Example codes include instant messaging (XMPP) and email (SMTP)
• Embedded hardware crypto engine for TLS/SSL internet security
• Flexible connection methods (provisioning) including access point mode, WPS, SmartConfig™ technology,and WAC
• Low-power radio and advanced low-power modes
• Peripheral set includes parallel camera, I2S audio, SDMMC, ADC, SPI, UART, I2C, and PWMs
• Small 9mm x 9mm QFN package

Why this LaunchPad?

Enables quick development of Internet of Things designs with a single-chip Wi-Fi solution.

BoosterPack connector

Two dual-gender, 20-pin stackable headers
