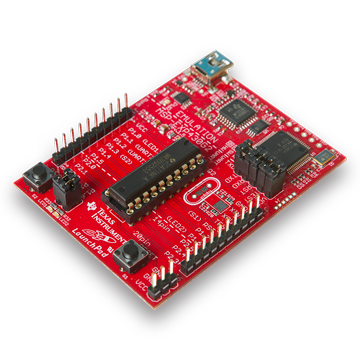

MSP-EXP430G2
The MSP-EXP430G2 LaunchPad is not supported by the Mac or Linux versions of the Code Composer Studio™ Integrated Development Environment. If you want to work with these operating systems, we suggest you select one of the many other MSP LaunchPads.
MSP-EXP430G2
Important Note:
The MSP-EXP430G2 LaunchPad is not supported by the Mac or Linux versions of the Code Composer Studio™ Integrated Development Environment. If you want to work with these operating systems, we suggest you select one of the many other MSP LaunchPads.
On-board emulation
The MSP430 LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.
BoosterPack-compatibility
All pins of the MSP430G2 device are fanned out for easy access. These pins make it easy to plug in 20-pin BoosterPacks that add additional functionality like wireless, capacitive touch and more
Switches & LEDs
A general purpose switch, reset switch and two LEDs are provided on-board for quick development.
What's included?
MSP430 LaunchPad includes everything you need to get started with MSP430 development!
- MSP-EXP430G2 LaunchPad
- MSP430G2553 microcontroller (with demo code)
- MSP430G2452 microcontroller
- Mini-USB cable
- Quick Start Guide
- 32kHz external crystal
Why this LaunchPad?
- 20 pin DIP socket for easy breadboarding/prototyping
- Great general purpose LaunchPad
- Low power operation is great for battery-operated applications
BoosterPack connector
20-pin
Microcontroller Features
- 16MHz
- 16KB Flash
- 512B RAM
- 8ch 10-bit ADC
- Comparator
- 2 16-bit Timers
- Up to 1 I2C, 2 SPI, 1 UART
