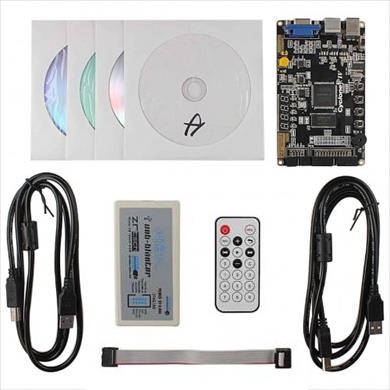

برد آلترا سایکلون 4 Altera Cyclone IV FPGA همراه با پروگرامر
دست دوم،
صحت عملکرد توسط کارشناسان فنی شرکت تضمین می شود.

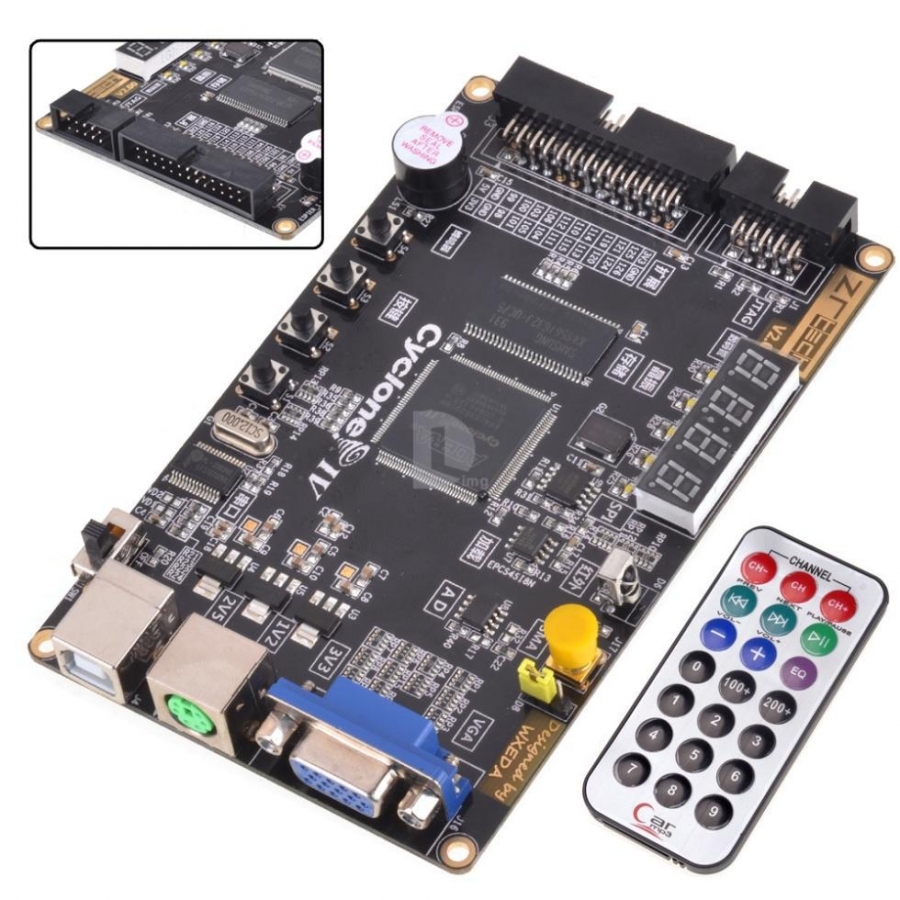

برد آلترا سایکلون 4 Altera Cyclone IV FPGA همراه با پروگرامر
The new Cyclone-IV development board provides a complete hardware environment for designers to accelerate their time to market.The kit delivers a stable platform to develop and test designs targeted to the low-cost and low-power Altera Cyclone IV FPGA. The installed Cyclone IV device offers a prototyping environment to effectively demonstrate the enhanced benefits of low-cost Altera FPGA solutions. Reference designs are included with the kit to exercise standard peripherals on the evaluation board for a quick start to device familiarization.
Board Feature：
1.FPGA : Altera Cyclone IV EP4CE6E22C8N FPGA
2.JTAG Port : On-board JTAG Port for programming
3.SDRAM :One 32Mbit Single Data Rate Synchronous Dynamic RAM memory chip
4.Flash:32Mbit SPI Flash memory
5.Series Flash: EPCS4 4Mbit
6.PS2 Port :Provides the PS2 port for Mouse and Keyboard
7.Pushbutton switches : 4 User Keys, Normally high; generates one active-low pulse when the switch is pressed
8.Infrared Receiver :Communicate with a Remoter for wireless control
9.General User Interfaces :
4 User LEDs (Active low)
4 User LEDs (Active low)
4 digital tube 7-segment display (Active high)
Active Type Buzzer
10.System Clock inputs :48MHz Active oscillator
11.VGA output : Uses a 8-bit resistor-network DAC under RGB565 Mode, With 15-pin high-density D-sub connector
12.AD Circuit and SMA input : Use an AD chip, Use a SMA port for AD signal input
13.Voltage Regulator Circuit :Provides 1.2V,2.5V and 3.3V for system power supply
14.Jumper：Selection for External or on-board AD signal source.
15.On-board USB to TTL/RS232 Module: Use PL2303 for USB-TTL/RS232 Converting (Without DB-9 serial connector)
16.26-PIN Expansion Headers :
Altera Cyclone IV I/O pins, as well as 3 power and ground lines, are brought out to the 26-pin expansion connectors
نظرات کاربران درباره برد آلترا سایکلون 4 Altera Cyclone IV FPGA همراه با پروگرامر
نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد برد آلترا سایکلون 4 Altera Cyclone IV FPGA همراه با پروگرامر نظر می دهد.
کد محصول
STOCK-4
وضعیت موجودی
نا موجود
