پروگرامر و دیباگر STLINK-V3MINI اورجینال

Features

• Stand-alone probe

• Approximately 15 x 30 mm high-density

  integration PCB

• Delivered with 1.27 mm pitch STDC14 debug connector and STDC14 to STDC14 flat cable

• Self-powered through a USB connector (Micro-B)

• USB 2.0 high-speed compatible interface

• Direct firmware update support (DFU)

• JTAG / serial wire debugging (SWD) specific features:

  • –  3 V to 3.6 V application voltage support and 5 V tolerant inputs

  • –  JTAG communication support

  • –  SWD and serial wire viewer (SWV)

    communication support

• Virtual COM port (VCP) specific features:

  • –  3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs

  • –  VCP frequency up to 15 MHz

• Drag-and-drop Flash programming

• Two color LEDs: communication, power

• Includes STDC14 signals protection

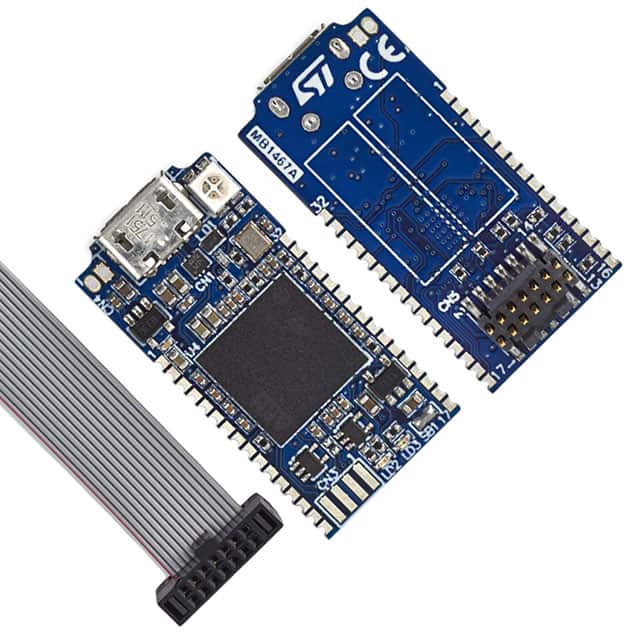

Picture is not contractual.

The STLINK-V3MINI is a stand-alone debugging and programming mini probe for STM32 microcontrollers.

The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board.

The STLINK-V3MINI also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART.

The STLINK-V3MINI is a portable version, easy- to-use debugger//programmer including STDC14 interface with its flat cable.
