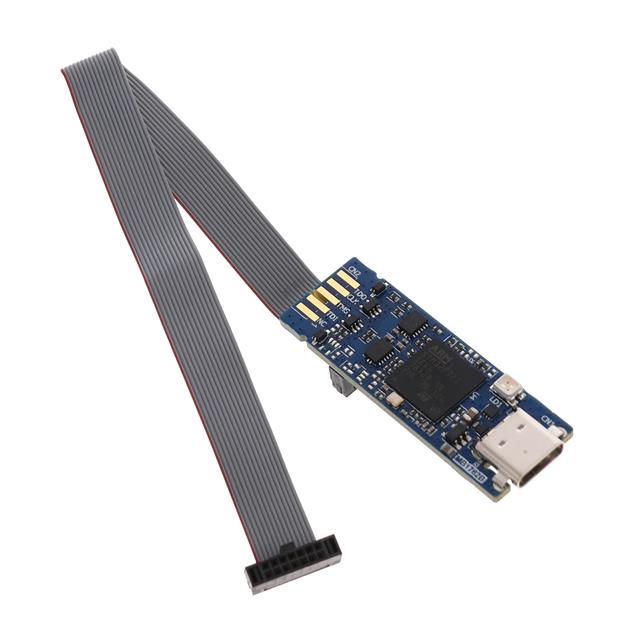

پروگرامر و دیباگر STLINK-V3MINIE

Description

STLINK-V3MINIE is a stand-alone debugging and programming tiny probe for STM32 microcontrollers.

The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board.

STLINK-V3MINIE also provides a Virtual COM port interface for the host PC to communicate with the target microcontroller through one UART.

STLINK-V3MINIE is a portable version easy‑to‑use debugger and programmer including STDC14 interface with its flat cable and on‑board pads for board‑to‑board (BTB) card edge connector.

All features

Tiny 15 mm × 42 mm standalone debugging and programming probe for STM32 microcontrollers
Self‑powered through a USB Type-C^® connector
USB 2.0 high-speed interface
Probe firmware update through USB
Optional drag‑and‑drop Flash memory programming of binary files
Communication bi-color LED

JTAG communication support up to 21 MHz
SWD (Serial Wire Debug) and SWV (Serial Wire Viewer) communication support up to 24 MHz
Virtual COM port (VCP) up to 15 Mbps
1.65 to 3.60 V application voltage support
Board connectors:USB Type-C1.27 mm pitch STDC14 debug connector with STDC14 to STDC14 flat cable2.0 mm pitch on-board pads for BTB (Board-to-board) card edge connector
