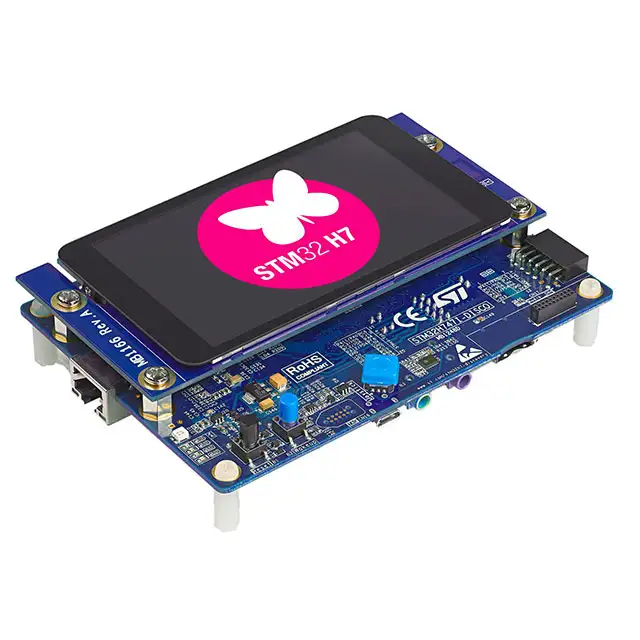

برد دیسکاوری STM32H747I-DISCO

برد دیسکاوری STM32H747I-DISCO

Features
• STM32H747XIH6 Arm®-based microcontroller
with 2 Mbytes of Flash memory and 1 Mbyte of
RAM in TFBGA240 + 25 package
• 4” capacitive touch LCD display module with
MIPI® DSI interface (STM32H747I-DISCO
order code only)
• Ethernet compliant with IEEE802.3-2002
• USB OTG HS
• SAI audio codec
• ST-MEMS digital microphones
• 2 x 512-Mbit Quad-SPI NOR Flash memory
• 256-Mbit SDRAM
• 4 color user LEDs
• 1 user and reset push-button
• 4-direction joystick with selection button
• Fanout daughterboard
• Board connectors:
– Camera (8-bit)
– USB with Micro-AB
– Ethernet RJ45
– SPDIF RCA input and output
– Stereo headset jack including analog
microphone input
– Audio jack for external speakers
– microSD™ card
– TAG-Connect 10-pin footprint
– Arm® Cortex® 10-pin 1.27 mm-pitch debug
connector over STDC14 footprint
• Board expansion connectors:
– Arduino™ Uno V3
– Pmod™ Type 2A and Type 4A
– STMod+
– Audio daughterboard
• Flexible power-supply options:
– ST-LINK USB VBUS, USB OTG HS
connector, or external sources
• On-board STLINK-V3E debugger/programmer
with USB re-enumeration capability: mass
storage, Virtual COM port and debug port
• Comprehensive free software libraries and
examples available with the STM32Cube MCU
Package
• Support of a wide choice of integrated
development environments (IDEs), including
IAR™, Keil® and GCC-based IDEs
