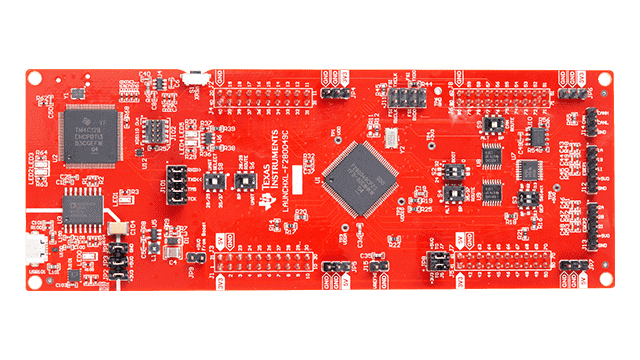

برد لانچپد LAUNCHXL-F280049C
برد لانچپد LAUNCHXL-F280049C
Description
To get started developing with this LaunchPad:
Step 1: Buy the C2000 MCU F280049C Launchpad
Step 2: Follow the get started section below
LAUNCHXL-F280049C is a low cost evaluation and development tool for the F28004x series (including InstaSPIN-FOC capability) in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. This extended version of the LaunchPad supports the connection of two BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.
Features
Hardware Features
- TMS320F280049C: 100 MHz C28x CPU with FPU and TMU, 256 KB Flash, InstaSPIN-FOC enabled, 3x 12-bit ADC, CAN, encoder, FSI, UART, and more
- On-board XDS110 debug probe for real-time debug and flash programming
- 80 pin LaunchPad leveraging the BoosterPack ecosystem
- Power domain isolation for real-time debug and flash programming
- Isolated CAN transceiver
- Two encoder interface connectors
- FSI interface connector
- Hardware Files are in C2000Ware at boards\LaunchPads\LAUNCHXL_F280049C
Software Features
- Free download of Code Composer Studio IDE
- Free download of C2000Ware for device drivers and example projects
- Free download of MotorControl SDK
- MathWorks Embedded Target Support
-
solidThinking Embed Support
- Training Video: PMSM control series, including InstaSPIN-FOC
-
Powersim PSIM Support
- InstaSPIN Processor-in-the-Loop (PIL) and code generation feature
Recommended BoosterPacks
-
TI BoosterPack Checker for an interactive list of compatible BoosterPacks
Get Started
-
For InstaSPIN-FOC
-
Download MotorControl SDK and follow User’s Guides
-
-
For non-InstaSPIN
- Install Code Composer Studio IDE and C2000Ware.
- Connect the LaunchPad using the included Micro USB cable to a computer
- Open a serial terminal program of your choice (Putty, HyperTerm, etc.) and configure it to access the LaunchPad virtual COM port with 115200 Baud, 8-bit data, No parity, and single stop Bit. The COM port number can be found by opening your computer’s Device Manager
- Ensure that the XDS110's second port is a serial port. Refer to the XDS110 Wiki for the configuration details
- When connected to your computer, the LaunchPad will power up and flash the red and blue LEDs for approximately 3 seconds. After the LEDs complete flashing, the LaunchPad will enter an ADC sample mode
-
The terminal will display the latest ADC sample reading based on ADCINA5 (Pin 23 of the BoosterPack header) at a one second interval
- If the sample is below mid-scale (1.5V/2048) the green LED (LED5) will light
- If the sample is above mid-scale the red LED (LED4) will light
- Build and load other examples in C2000Ware
- Ask questions on the TI C2000 e2e forum
What's Included
- Piccolo F280049C Launchpad
- Micro USB cable
- Quick Start Guide
