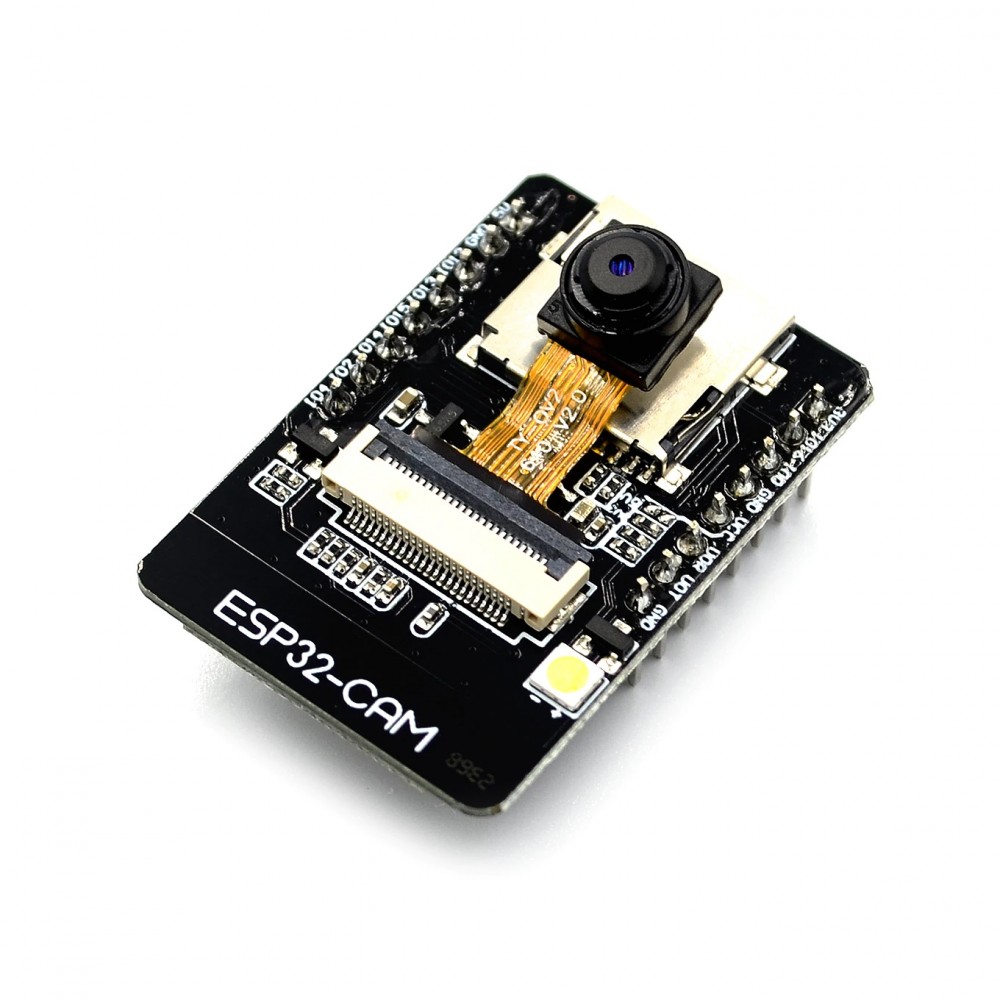

برد توسعه ESP32CAM دارای هسته ESP32 ، وایفای و بلوتوث داخلی

برد توسعه ESP32CAM دارای هسته ESP32 ، وایفای و بلوتوث داخلی

Features
1. Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
2. Low-power dual-core 32-bit CPU for application processors
3. Up to 240MHz, up to 600 DMIPS
4. Built-in 520 KB SRAM, external 4M PSRAM
5. Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
6. Support OV2640 and OV7670 cameras with built-in flash
7. Support for images WiFI upload
8. Support TF card
9. Support multiple sleep modes
10. Embedded Lwip and FreeRTOS
11. Support STA/AP/STA+AP working mode
12. Support Smart Config/AirKiss One-click distribution network
13. Support for serial local upgrade and remote firmware upgrade (FOTA)
14. The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 27*40.5*4.5mm, with deep sleep current and a minimum of 6mA.
15. ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
16. ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.
17. This product contains the OV2640 Camera Module.

Specifications
1. Material: FR4
2. Dimensions: 4 cm x 2.7cm x 0.5 cm
3. Weight: 18g
4. Module model: ESP32-CAM
5. SPI Flash: Default 32Mbit
6. RAM: internal520KB+external 4M PSRAM
7. Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards
8. Wi-Fi: 802.11 b/g/n/e/i
9. Support interface: UART, SPI, I2C, PWM
10. Support TF card: Maximum support 4G
11. IO port: 9
12. Serial port rate: Default 115200 bps
13. Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
14. Spectrum range: 2412 ~ 2484MHz
15. Antenna form: Onboard PCB antenna , gain 2dBi
16. Transmit power: 802.11b: 17+/-2 dBm (@11Mbps), 802.11g: 14+/-2 dBm (@54Mbps), 802.11n: 13+/-2 dBm (@MCS7)
17. Receiving sensitivity: CCK, 1 Mbps : -90dBm, CK, 11 Mbps: -85dBm, 6 Mbps (1/2 BPSK): -88dBm, 54 Mbps (3/4 64-QAM): -70dBm, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
18. Power consumption: Turn off the flash: 180mA@5V
19. Turn on the flash and adjust the brightness to the maximum: 310mA@5V
20. Deep-sleep: The lowest power consumption can reach 6mA@5V
21. Moderm-sleep: Up to 20mA@5V
22. Light-sleep: Up to 6.7mA@5V
23. Security: WPA/WPA2/WPA2-Enterprise/WPS
24. Power supply range: 5V
25. Operating temperature: -20 degree C ~ 85 degree C
26. Storage environment: -40 degree C ~ 90 degree C, < 90%RH

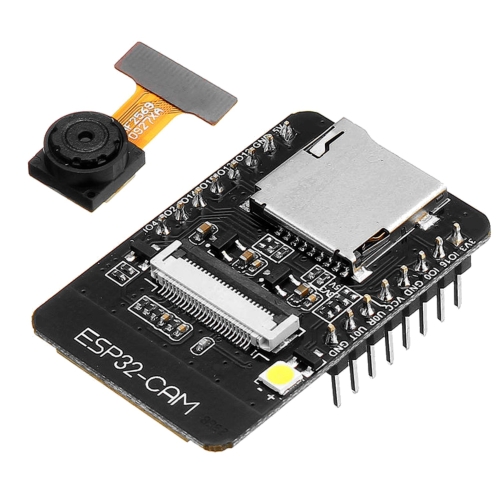

27. Package Included:
- 1 x ESP32-CAM Module
- 1 x Camera Module OV2640 2MP
