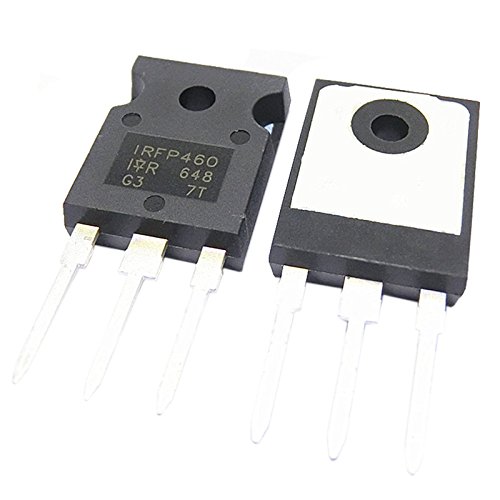

ماسفت IRFP460 پکیج TO-247

ماسفت IRFP460 پکیج TO-247

Product Category:     MOSFET
 RoHS:     No
Technology:     Si
Mounting Style:     Through Hole
Number of Channels:     1 Channel
Transistor Polarity:     N-Channel
Vds - Drain-Source Breakdown Voltage:     500 V
Id - Continuous Drain Current:     20 A
Rds On - Drain-Source Resistance:     270 mOhms
Vgs - Gate-Source Voltage:     20 V
Maximum Operating Temperature:     + 150 C
Fall Time:     58 ns
Minimum Operating Temperature:     - 55 C
Pd - Power Dissipation:     280 W
Rise Time:     59 ns
Factory Pack Quantity:     500
Transistor Type:     1 N-Channel
Typical Turn-Off Delay Time:     110 ns
Typical Turn-On Delay Time:     18 ns
