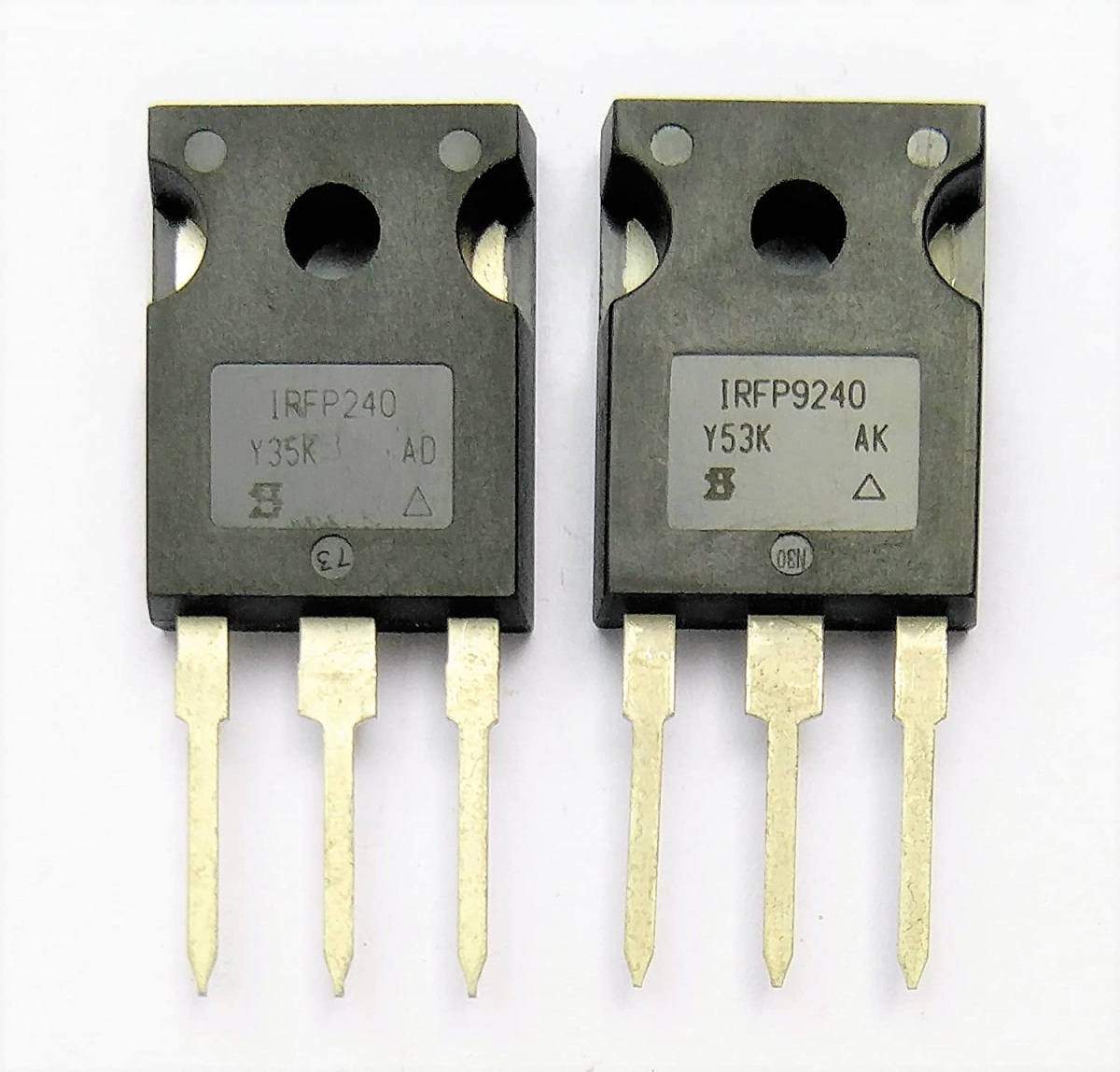

ماسفت IRFP9240 پکیج TO-247

ماسفت IRFP9240 پکیج TO-247

Package / Case:     TO-247-3
Number of Channels:     1 Channel
Transistor Polarity:     P-Channel
Vds - Drain-Source Breakdown Voltage:     - 200 V
Id - Continuous Drain Current:     12 A
Rds On - Drain-Source Resistance:     500 mOhms
Vgs - Gate-Source Voltage:     20 V
Maximum Operating Temperature:     + 150 C
Fall Time:     38 ns
Minimum Operating Temperature:     - 55 C
Pd - Power Dissipation:     150 W
Rise Time:     43 ns
Factory Pack Quantity:     500
Transistor Type:     1 P-Channel
Typical Turn-Off Delay Time:     39 ns
Typical Turn-On Delay Time:     14 ns
