رادار ۲۴ گیگاهرتز با قابلیت سنجش سرعت و فاصله با برد ۱۰۰ متر
رادار ۲۴ گیگاهرتز با قابلیت سنجش سرعت و فاصله با برد ۱۰۰ متر

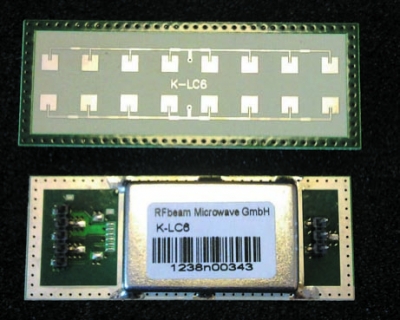

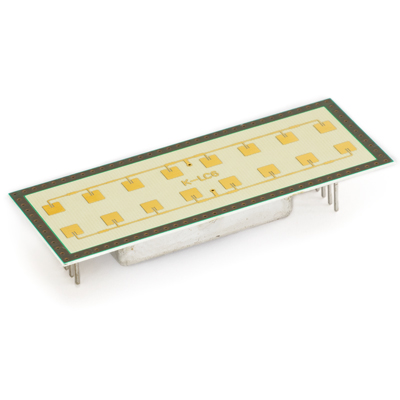

K-LC6 Radar Transceiver
–24 GHz short range transceiver
–Narrow

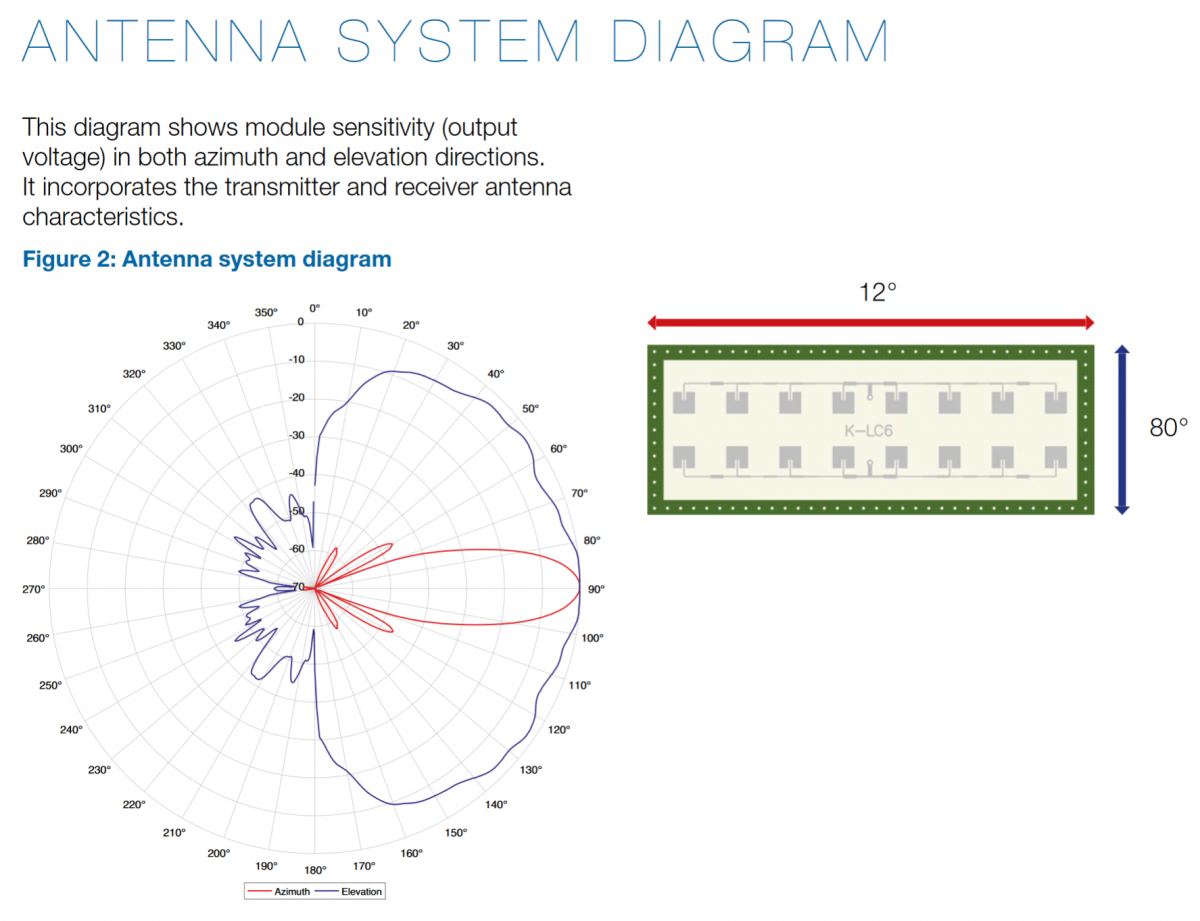

– wide asymmetrical field pattern–Beam aperture 80 ° / 12 °
–High sensitive LNA receiver
–300 MHz wide sweep FM input
–I / Q IF outputs–Optional IF amplifier ( K-LC6-RFB-01x )
–Compact size : 66 mm × 25 mm × 6 mm
–Indoor and outdoor lighting control applications
–Traffic supervision and counting
–Object speed measurement systems
–Ranging and distance detection using FSK or FMCW
–Industrial sensors
–Home automation
Description
K-LC6 is a dual channel Doppler Radar module with an asymmetrical narrow beam for short to medium distance sensors. It is ideally suited for person or vehicle movement and presence sensors.
This module includes an RF low noise amplifier (LNA) for best signal to noise performance. Dual IF I and Q allow movement direction detection and high performance signal processing.
The optional internal IF amplifier is available in version
K-LC6-RFB-01x.
An extremely slim construction with only 6 mm depth gives you maximum flexibility in your equipment design.
Powerful starterkits with signal conditioning and visualization are also available (ST100 / ST200)
