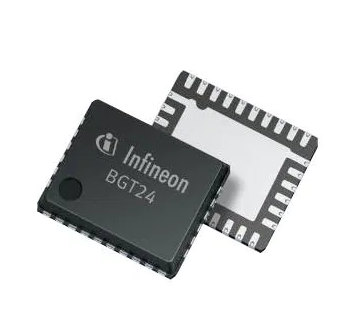

چیپ رادار 24 گیگاهرتز BGT24MTR12 دارای 1 فرستنده و 2 گیرنده داخلی-اورجینال

چیپ رادار 24 گیگاهرتز BGT24MTR12 دارای 1 فرستنده و 2 گیرنده داخلی-اورجینال

Features
• 24 GHz transceiver MMIC with one transmitter and two receiver units
• Fully integrated low phase noise VCO
• Switchable prescaler with 1.5 GHz and 23 kHz output
• On chip power and temperature sensors
• Gilbert based homodyne quadrature receiver
• Single ended RF input terminals
• Low noise figure NF SSB: 12 dB
• High conversion gain: 26 dB
• High 1 dB input compression point: -12 dBm
• Single supply voltage 3.3 V
• Power consumption 690 mW in continuous operating mode
• 200 GHz bipolar SiGe:C technology b7hf200
• Fully ESD protected device
• VQFN-32-9 leadless plastic package incl. LTI feature
• Pb-free (RoHS compliant) package
Description
The BGT24MTR12 is a Silicon Germanium MMIC for signal generation and reception, operating from 24.0 to 24.25
GHz. It is based on a 24 GHz fundamental voltage controlled oscillator. A switchable frequency prescaler is
included with output frequencies of 1.5 GHz and 23 kHz. The main RF output delivers typ. 11 dBm signal power
to feed an antenna. A RC polyphase filter (PPF) is used for LO quadrature phase generation of the homodyne
quadrature downconversion mixer. Output power sensors as well as a temperature sensor are implemented for
monitoring purposes. The device is controlled via SPI and is manufactured in a 0.18μm SiGe:C technology offering
a cutoff frequency of 200 GHz. The MMIC is packaged in a 32 pin leadless RoHs compliant VQFN package.
