رادار IWR6843ISK فرکانس 60-64گیگاهرتز با قابلیت سنجش سرعت، فاصله، زاویه / محصول اورجینال شرکت Texas Instruments

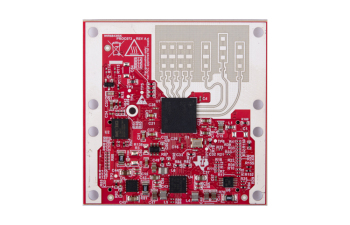

Texas Instruments IWR6843ISK mmWave Sensor Evaluation Kit

Texas Instruments IWR6843ISK mmWave Sensor Evaluation Kit is an easy-to-use kit with a long-range antenna enabling direct connectivity to the mmWave sensor card carrier (MMWAVEICBOOST). The board enables access to point-cloud data through a USB interface and raw analog-to-digital converter (ADC) data through a 60-pin high-speed connector. This kit is supported by standard mmWave tools and software, including mmWave Studio (MMWAVE-STUDIO) and the mmWave software development kit (MMWAVE-SDK). IWR6843ISK, paired with MMWAVEICBOOST (sold separately), can interface with the MCU LaunchPad™ development kit ecosystem. A 5V 2.5A supply brick with a 2.1mm barrel plug (center positive) is not included. TI recommends purchasing an external power supply that complies with applicable regional safety standards.

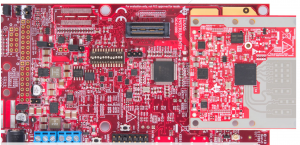

MMWAVEICBOOST carrier card expands capabilities of select mmWave Evaluation modules. This board provides advanced software developement , debug features like trace and single step via TI’s Code Composers compatible debuggers. Onboard Launchpad interface enables pairing with TI’s Booster pack compatible hardware for additional sensors and wireless connectivity. The board enables access to wider set of peripherals to MMWAVEICBOOST compatible EVM.

MMWAVEICBOOST includes a LaunchPad™ development kit interface for expanded connectivity, such as Power over Ethernet (PoE), Wi-Fi®, sub-GHz, and more

Features(MMWAVEICBOOST):

Front View

Back View
