برد OSD32MP1 با پردازنده STM32MP157C Dual Arm® Cortex® A7 + M4

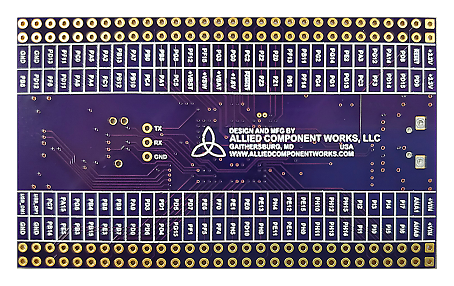

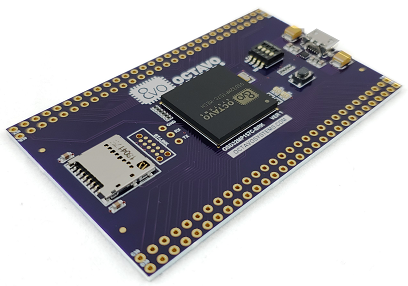

The OSD32MP1-BRK is a small flexible prototyping platform for the STM32MP1 based SiP, the OSD32MP15x. At only 3in X 1.8in (75mm X 46mm), it provides easy access to the I/O of the STM32MP1 through a set of breadboard compatible headers. The OSD32MP1-BRK allows developers to quickly build a proof of concept that more closely resembles their actual system without the need to build their own custom hardware.

The OSD32MP1-BRK features the OSD32MP15x System in Package, a microSD slot, 32KHz crystal, a microUSB client port, and two 2×30 100 mill headers. The headers give access to 106 I/O on the STM32MP1 integrated into the OSD32MP15x SiP. It uses a 4 Layer PCB with low cost design rules and has no back side components.

Its minimal overhead and access to a wide range of I/O make the OSD32MP1-BRK the perfect platform for any designer looking for complete flexibility as they prototype their design.

The OSD32MP1-BRK is designed and manufactured by Allied Component Works, LLC, a member of the Octavo Systems partner network.

Related Products:

OSD32MP15x – System in Package Module for the STM32MP1
OSD32MP1-RED – Full Featured Reference, Evaluation, Development Platform for the OSD32MP15x SiP

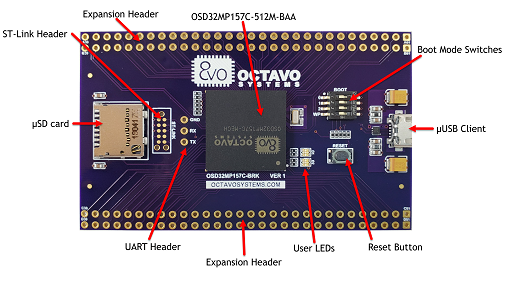

OSD32MP1-BRK Features

Small Form Factor
- Only 3in X 1.8in (75mm X 46mm)
Access to 106 I/O
- two 2×30 100mil (2.54mm) Headers
- Maximum flexibility to prototype designs
- Breadboard Compatible
OSD32MP157C-512M-BAA
- STM32MP157C Dual Arm® Cortex® A7 + M4
- 512MB DDR3 Memory
- STPMIC1A Power Management
- EEPROM
- Oscillator
- Passives
µUSB
STLink*
UART
µSD Card
32KHz Crystal
4 Layer Design
No Back Side Components

OSD32MP1-BRK Flexible Development Platform Block Diagram — OSD32MP1-BRK Block Diagram

* Accessed via a Tag-Connect® header. For more information please see these links: ST-LINK V2 Cable Selection, ST-Link V3 Cable Selection

Technical Documents

Getting Started Guide – A guide to quickly get up and running with the OSD32MP1-BRK Flexible Prototyping platform

Application Notes

OSD32MP1 Pin Muxing Overview – Quick Reference that shows the Pin Mux functions of the STM32MP1 and how they map to the OSD32MP1 System-in-Package, the OSD32MP1-BRK, and OSD32MP1-RED

All App Notes…

Design Files

OSD32MP1-BRK Schematics (PDF) | Version: X2 | April 15, 2020

OSD32MP1-BRK Design Files (Altium) | Version: X2 | April 15, 2020

OSD32MP1-BRK Bill of Materials (BoM) (Excel) | Version: X2 | April 15, 2020

Octavo Systems Symbol Library - Altium | Version: 10.0 | April 12, 2023

Software

Device Trees

Device Tree – Board data structure to describe OSD32MP1-BRK hardware for Linux kernel

SDKs

Debian SDK – SDK that can be used to develop Debian Images for OSD32MP1 based platforms.
OpenSTLinux Yocto Layer – Yocto Compatible Layer for building OpenSTLinux images for OSD32MP1 based platforms.
