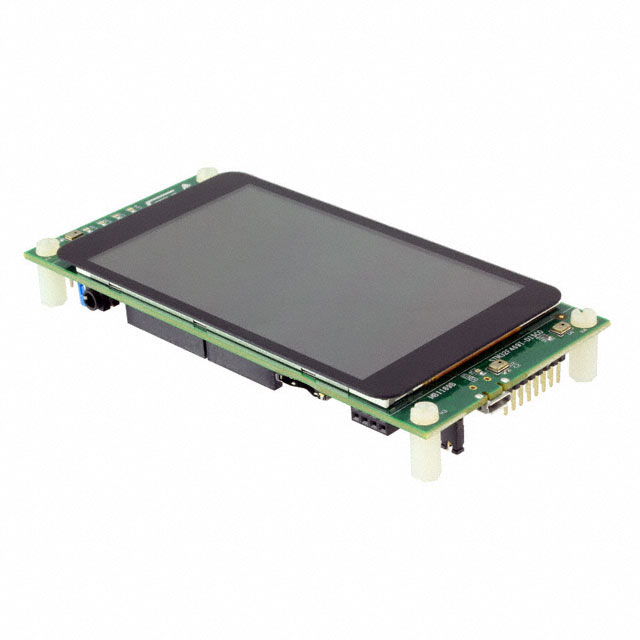

برد دیسکاوری STM32F469I-DISCO

Description

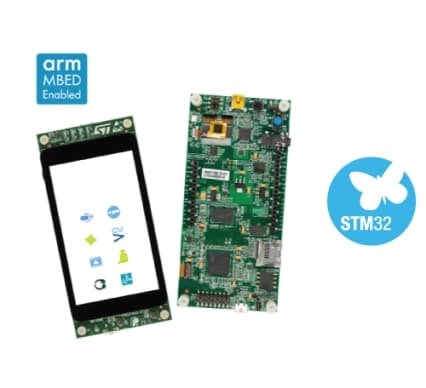

The STM32F469 Discovery kit (32F469IDISCOVERY) allows users to easily develop applications with the STM32F469 high-performance MCUs with ARM^®Cortex^®-M4 core and Chrom-ART Accelerator^™. The discovery kit enables a wide range of use cases taking advantage of premium graphics, audio, multi-sensor support, WVGA color display, security, memory extension and connectivity features. An embedded ST-LINK/V2-1 debugger/programmer is included; specialized add-on boards can be connected thanks to the Arduino^™UNO or to the expansion connectors.

All features

STM32F469NIH6 microcontroller featuring 2 Mbytes of Flash memory and 324 Kbytes of RAM in BGA216 package
On-board ST-LINK/V2-1 SWD debugger, supporting USB reenumeration capability:
- Mbed-enabled (mbed.org)
- USB functions: USB virtual COM port, mass storage, debug port
4 inches 800x480 pixel TFT color LCD with MIPI DSI interface and capacitive touch screen
SAI Audio DAC, with a stereo headphone output jack
3 MEMS microphones
MicroSD card connector
I2C extension connector
4Mx32bit SDRAM

128-Mbit Quad-SPI NOR Flash
Reset and wake-up buttons
4 color user LEDs
USB OTG FS with Micro-AB connector
Three power supply options:
Expansion connectors and Arduino^™UNO V3 connectors
Comprehensive free software including a variety of examples, part of STM32Cube package
Supported by a wide choice of integrated development environments
