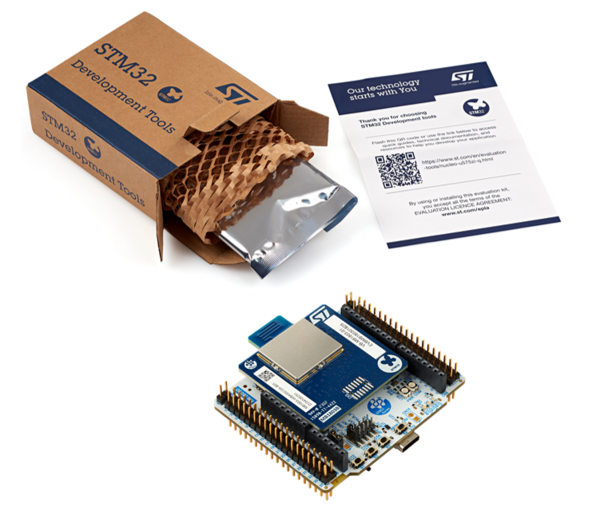

برد نوکلئو NUCLEO-WBA55CG

Description

NUCLEO-WBA52CG and NUCLEO-WBA55CG are Bluetooth^® Low Energy wireless and ultra-low-power boards embedding a powerful and ultra‑low‑power radio compliant with the Bluetooth^® Low Energy SIG specification v5.3, IEEE 802.15.4-2015 PHY and MAC, supporting Thread^®, Chip, and Zigbee^®.

The ARDUINO^® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

All features

Ultra-low-power wireless STM32WBA5xCG microcontroller based on the Arm^® Cortex^®‑M33 core, featuring 1 Mbyte of flash memory and 128 Kbytes of SRAM in a UFQFPN48 package
MCU RF board (MB1863/MB1803):
- 2.4 GHz RF transceiver supporting Bluetooth^® specification v5.3
- IEEE 802.15.4-2015 PHY and MAC, supporting Thread^®, Chip, and Zigbee^® (for NUCLEO-WBA55CG only)
- Arm^® Cortex^® M33 CPU with TrustZone^®, MPU, DSP, and FPU
- Integrated PCB antenna
Three user LEDs
Three user and one reset push-buttons
Board connectors:
- USB Micro-B (NUCLEO-WBA52CG) or USB Type-C^® (NUCLEO-WBA55CG)
- ARDUINO^® Uno V3 expansion connector
- ST morpho headers for full access to all STM32 I/Os
Flexible power-supply options: ST-LINK USB V_BUS or external sources
On-board STLINK-V3 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
Comprehensive free software libraries and examples available with the STM32CubeWB MCU Package
Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE
