سنسور مگنتومتر سه محوره BMM350

1.Introduction

BMM350 3-axis digital geomagnetic sensor. It can measure the magnetic field strength in three spatial axes and is characterized by low power consumption (200uA), low noise (190nT rms@xy-axis 450nT rms@z-axis), high range (±2000μT), and high sampling rate (400~25/16Hz, selectable).

It utilizes TMR (Tunneling Magneto Resistance) technology and has a unique field shock recovery function. This feature makes the device highly robust to external magnetic fields, thus always ensuring high accuracy under the impact of surrounding magnetic fields.

It can be used for indoor and outdoor navigation and positioning, electronic compass, and AR/VR device application development.

2.Features

• 1 programmable interrupt pin
• Low power consumption (200uA)
• Low noise (190nT rms@xy axis 450nT rms@z axis)
• High range (±2000μT)

3.Application

• Drones
• Gaming
• Indoor/Outdoor navigation
• Magnetic heading information
• Augmented reality
• Tilt-compensated electronic compass for map rotation

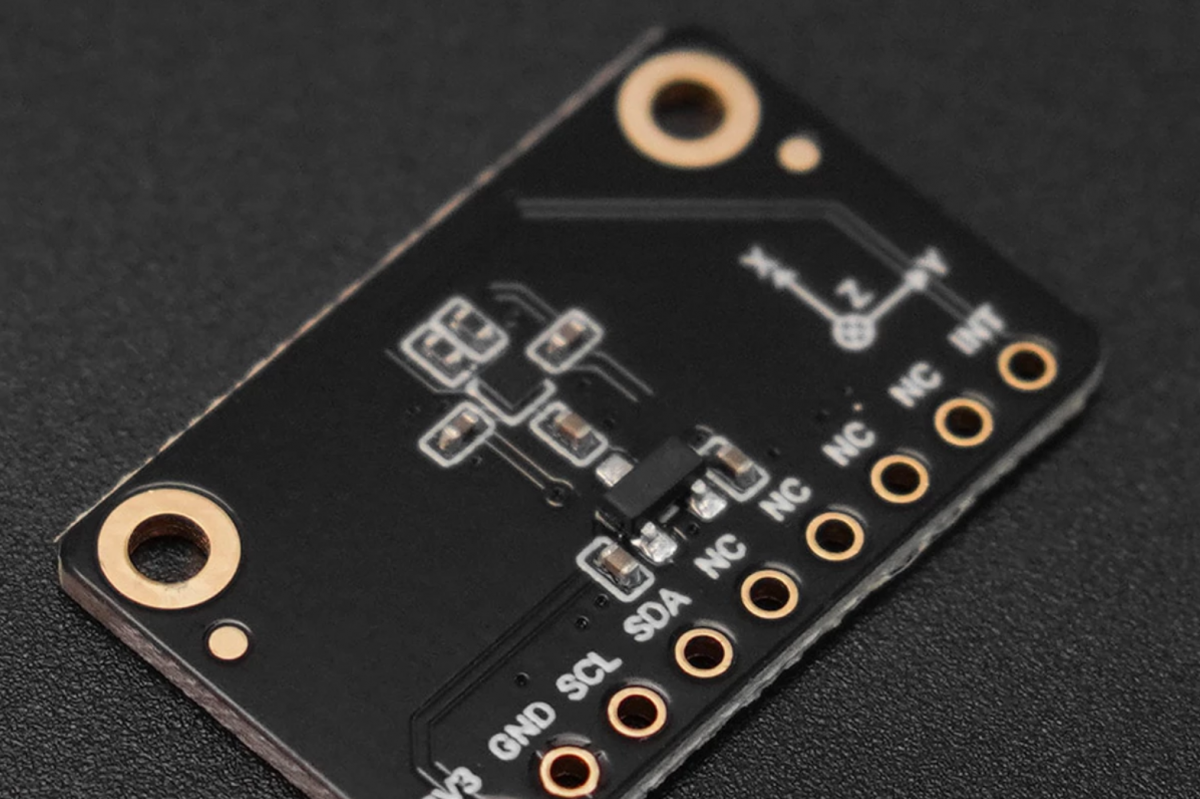

4.Pinout

Note:

• All voltages of data outputs are 3.3V.
• Only 3.3V input is allowed.

5.Specification

• Working voltage：3.3V
• Working temperature：-40~85°C
• Communication protocol：I2C
• Resolution：0.1uT
• Zero-point drift：±40uT
• Nonlinear error：< 1%FS（Full Scale）
• Measurement range：±2000μT
• Working current：200uA(Normal mode)
• Low noise：190nT rms@xy axis 450nT rms@z axis
• Accuracy：±2.5°（@30uT Horizontal magnetic field component）
• Start up time：3ms

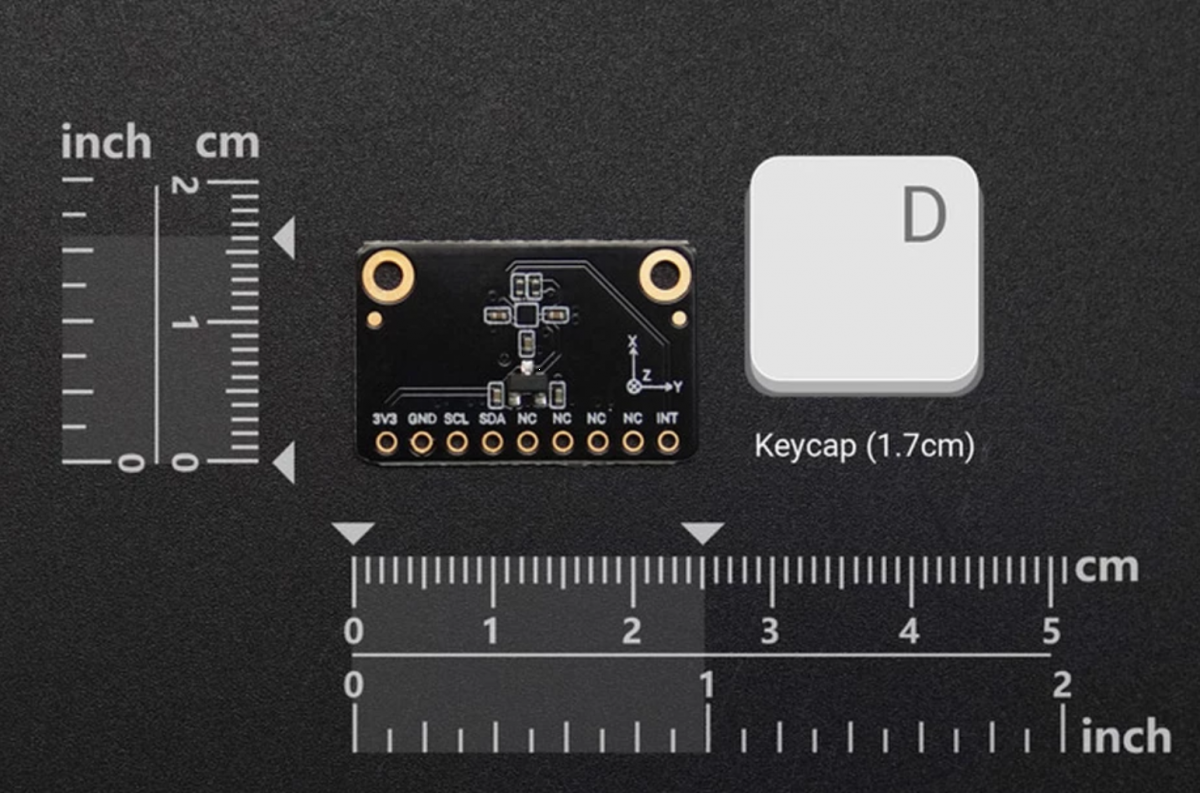

6.Dimensional Drawing
