SeeedStudio Non-Invasive AC Current Sensor (30A Max)
Description
• Non-invasive AC current sensor (30A max)
• Output mode: Voltage/1V
• Opening size: 13mm x 13mm
• Leading wire: 1.5m

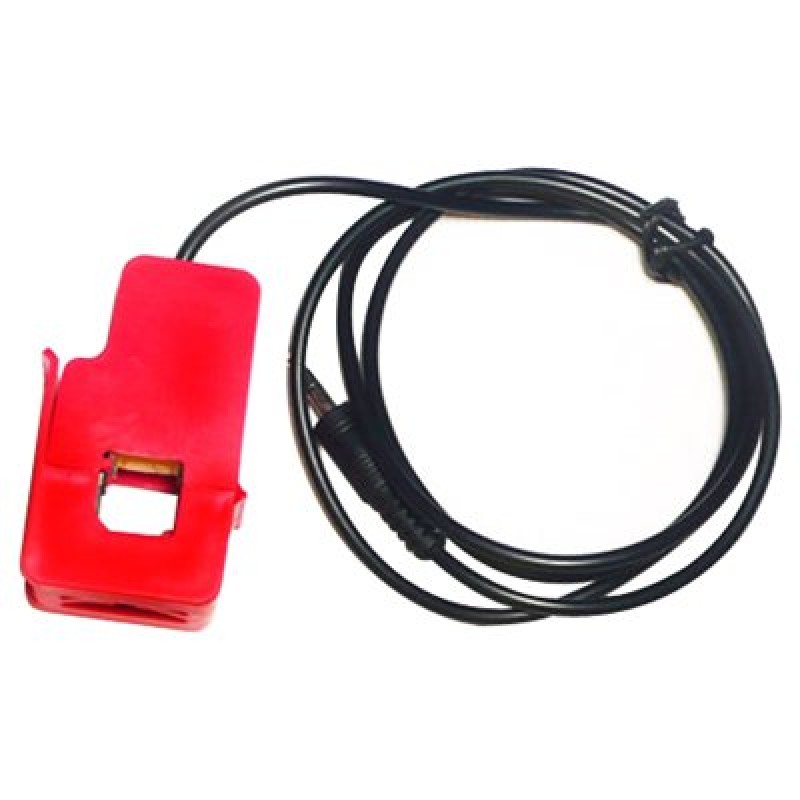

This is the SeeedStudio Non-Invasive AC Current Sensor (30A Max). It is a non-invasive current transformer. Use this sensor clip to build your own personal energy monitor. It is suitable for the current measuring monitoring and protection of AC motor lighting equipment, air compressor and so on. It is made with Ferrite core material and it's opening size 13mm x 13mm meets your requirements.

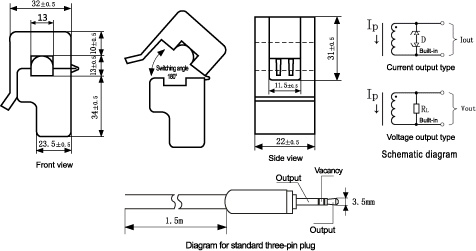

Output size diagram (in mm):
(1).jpg)
Specifications
• Opening size: 13mm x 13mm
• Non-linearity +/- 3% (10%-120% rated input current)
• 1.5m leading wire, Ø3.5 three core plug stanard output
• Current output type or Voltage output type: Voltage output type built-in sampling resistor
• Core material: Ferrite
• Mechanical strength: The number of switching is not less than 1000 times (test under 20ºC)
• Safety index: Dielectric strength (between Shell and output) 6000V AC/1min
• Fire resistance property: in accordance with UL94-VO
• Working temperature: -25ºC - +70ºC
