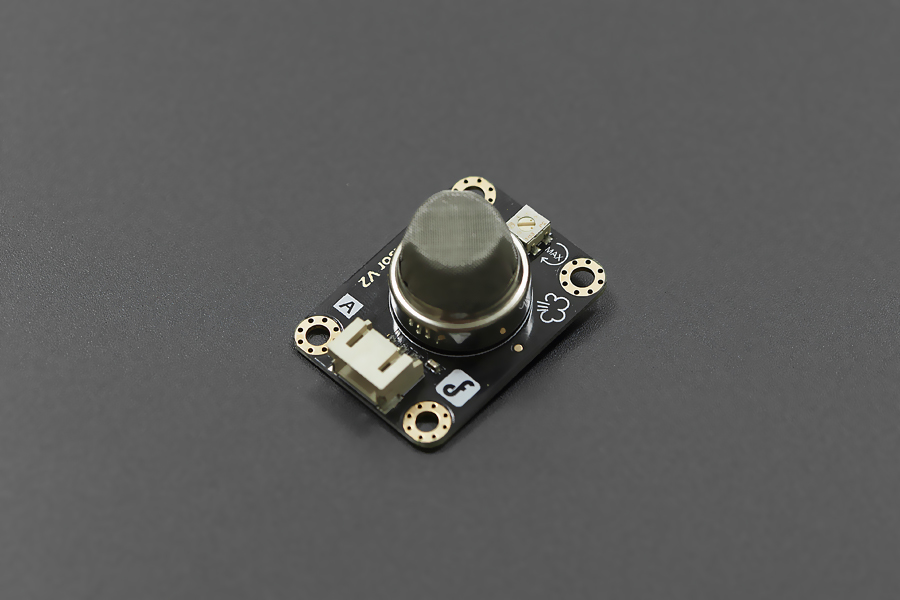

Analog LPG Gas Sensor(MQ6)
The MQ6 is a simple-to-use liquefied petroleum gas (LPG) sensor. It can be used in gas leakage detecting equipment in consumer and industry applications,this sensor is suitable for detecting LPG, iso-butane, propane, LNG. Avoid the noise of alcohol, cooking fumes and cigarette smoke. The sensitivity can be adjusted by the potentiometer.
Analog LPG Gas Sensor(MQ6)
The MQ6 is a simple-to-use liquefied petroleum gas (LPG) sensor. It can be used in gas leakage detecting equipment in consumer and industry applications,this sensor is suitable for detecting LPG, iso-butane, propane, LNG. Avoid the noise of alcohol, cooking fumes and cigarette smoke. The sensitivity can be adjusted by the potentiometer.
- Power supply needs: 5V
- Interface type: Analog
- Pin Definition: 1-Output 2-GND 3-VCC
- High sensitivity to LPG, iso-butane, propane
- Small sensitivity to alcohol, smoke
- Fast response
- Stable and long life
- Simple drive circuit
- Size: 40x20mm(1.57"x0.79")
