پروگرامر programmer Xilinx

Description:

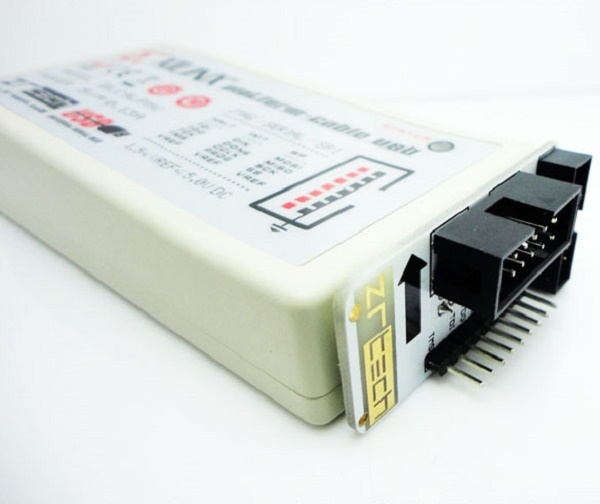

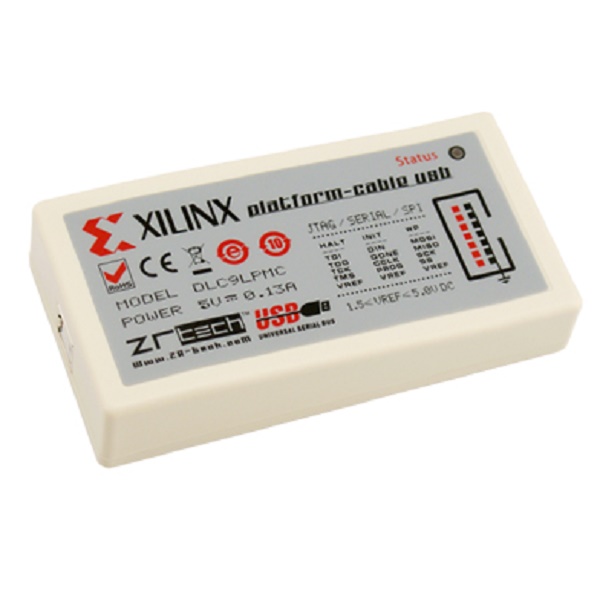

The Platform Cable USB is a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.

LED Status

Red and Purple: USB connected
Purple: USB connected, and Vref (the target board) is powered

توضیحات
نظرات کاربران
برچسب ها

پروگرامر programmer Xilinx

Feather product:
Automatic identification and to adapt to the target I / O voltage, compatible with vref 1.5v-- 5v

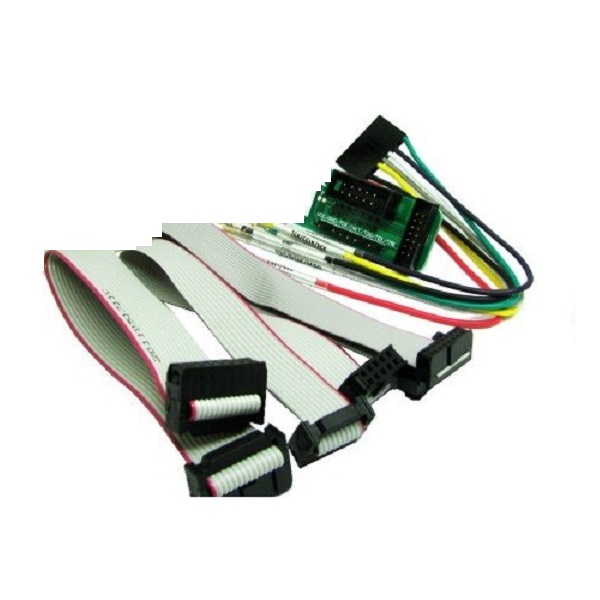

adapter6pcs download and debug all xilinx CPLD / FPGA devices
jtag support, slave serial, download the spi mode.
Fully compatible with xilinx platform ii usb cable, and have been upgraded to the latest firmware.
ChipScope impact and support.
LED status indicator indicating the target device's power status.
Automatic control of the clock speed can be downloaded when the target device.

supports the following operating system:
MicrosoftWindows win7
microsoft windows xp professional
Microsoft Windows Vista
red hat enterprise linux
suse linux enterprise

A list of supported devices:
all Artix7 / vertex7 / zyqn7 families
all Virtex FPGA families
all families fpga spartan :Xc9500 / xc9500xl / xc9500xv CPLD
coolrunner xpla3 / coolrunner- iigarantie CPLD :xc18v00 balls graduating and fai
xcf00s / xcf00p platform flash prom:XC4000 series Fpga serial peripheral interface programs (spi) Flash Drive
