پروگرامر PICkit 3
Description:
This is the new PICkit 3 from Microchip. If you want an official programmer from Microchip, this is it! The PICkit 3 allows debugging and programming of PIC and dsPIC microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE).
پروگرامر PICkit 3

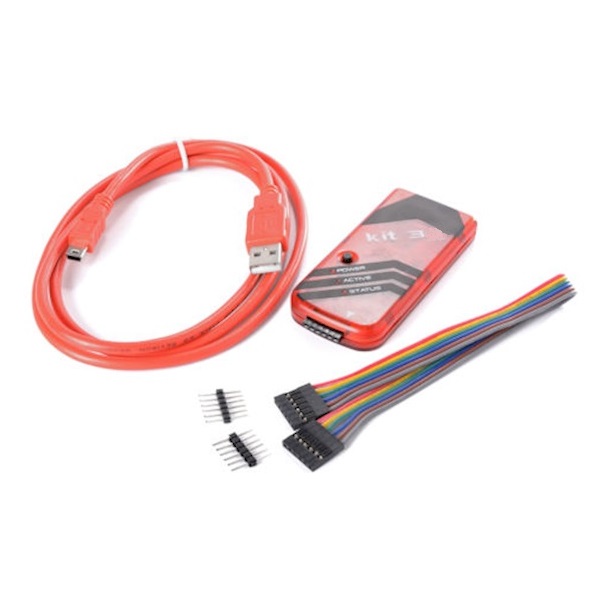

Description:
This is the new PICkit 3 from Microchip. If you want an official programmer from Microchip, this is it! The PICkit 3 allows debugging and programming of PIC and dsPIC microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to a PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2/ 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming. miniUSB cable included.
Features:
- USB (Full speed 12 Mbits/s interface to host PC)
- Real-time execution
- MPLAB IDE compatible (free copy included)
- Built-in over-voltage/short circuit monitor
- Firmware upgradeable from PC/web download
- Fully enclosed
- Supports low voltage to 2.0 volts (2.0v to 6.0v range)
- Diagnostic LEDs (power, busy, error)
- Read/write program and data memory of microcontroller
- Erase of program memory space with verification
- Freeze-peripherals at breakpoint
Documents:
نقد و بررسی پروگرامر PICkit 3
جهت دانلود نرم افزار و فایل ها مورد نیاز می توانید از لینک زیر استفاده کنید:
