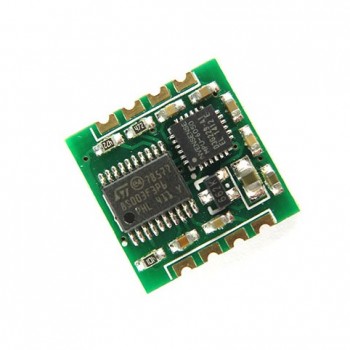

ماژول IMU شش محوره MPU6050 با فیلتر کالمن ( رابط TTL )
Features:
voltage: 3V ~ 6V
Current: <10mA
Size: 15.24mm X 15.24mm X 2mm
Pad pitch: down 100mil (2.54mm), about 600mil (15.24mm)
ماژول IMU شش محوره MPU6050 با فیلتر کالمن ( رابط TTL )
Features:
voltage: 3V ~ 6V
Current: <10mA
Size: 15.24mm X 15.24mm X 2mm
Pad pitch: down 100mil (2.54mm), about 600mil (15.24mm)
Measuring dimensions: Acceleration: 3-dimensional angular velocity: 3-dimensional,
attitude angle: 3-dimensional
Range acceleration: ± 2g, angular velocity: ± 250 ° / s.
Resolution: Acceleration: 6.1e-5g, the angular velocity: 7.6e-3 ° / s.
Stability: Acceleration: 0.001g, angular speed 0.02 ° / s.
Attitude measurement stability: 0.01 °.
Data output frequency 100Hz (baud 115200) / 20Hz (9600 baud).
Data Interface: Serial (TTL level), I2C (directly connected MPU6050, no gesture output)
baud:115200
