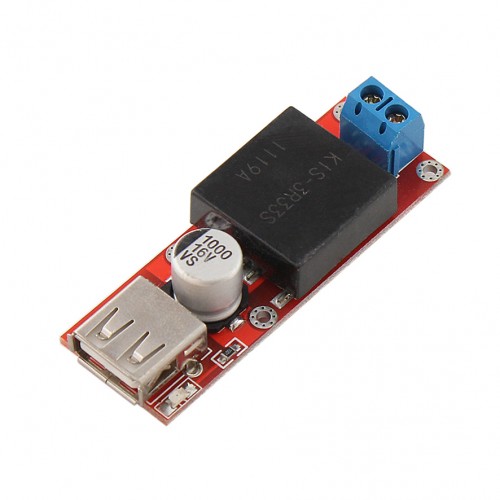

ماژول مبدل ولتاژ 5 ولت KIS3R33S
Modular nature: Non-isolated Buck (BUCK)
Rectification: Synchronous rectification
Input Voltage: 7V-24V
The output voltage: 5V
Output Current: 4A (short)
Conversion efficiency: 96% (maximum)
Switching frequency: 340KHz
ماژول مبدل ولتاژ 5 ولت KIS3R33S
Description:
Modular nature: Non-isolated Buck (BUCK)
Rectification: Synchronous rectification
Input Voltage: 7V-24V
The output voltage: 5V
Output Current: 4A (short)
Conversion efficiency: 96% (maximum)
Switching frequency: 340KHz
Output Ripple: 30mV (max)
Load Regulation: ¡À 0.5%
Voltage Regulation: ¡À 2.5%
Operating Temperature: -40 ¡æ to +85 ¡æ
External dimensions: 60 * 21 * 14 (L * W * H) (mm)
Features:
The power module is based on the Japanese origin of KIS3R33S module-specific design, the input voltage of 7V to 24V output voltage 5.01V, 2.5A continuous output current of 4A peak output. Be Able to provide 3A continuous load current. Professional testing by the majority of players, with ultra-efficient, ultra-low loss characteristics, perfect beyond lm2596 power module
This module has a USB recognition, the perfect support IPHONE4 IPAD, NOKIA N8 series phones
This module uses the original Sanyo low ESR filter capacitor ripple voltage as low as possible so 30mV, fully capable and linear power comparable.
