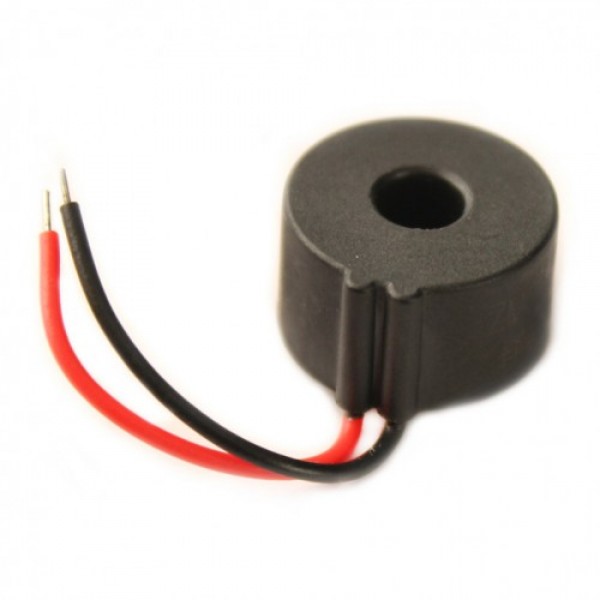

ترانس جریان ZMCT102W 5A / 2.5mA
ترانس جریان ZMCT102W 5A / 2.5mA
| ZMCT102W | |
| Rated input current | 5A |
| Rated output current | 2.5mA |
| turns ratio | 2000:1 |
| phase angle error | ≤30'(input 1A,sampling resistor 100Ω) |
| linear range | 0~20A(sampling resistor 100Ω) |
| linearity | ≤0.2%(5%dot~120%dot) |
| Permissible error | -0.2%≤f≤+0.2%(input 1A,sampling resistor 100Ω) |
| isolation voltage | 4500V |
| application | the precise measurement of current and power |
| Encapsulation | Epoxy |
| installation | Output leads installation (conventional lead length shown in drawing) |
| operating temperature | -40ºC~+85ºC |
کد محصول
BATT-POW-50
وضعیت موجودی
نا موجود
