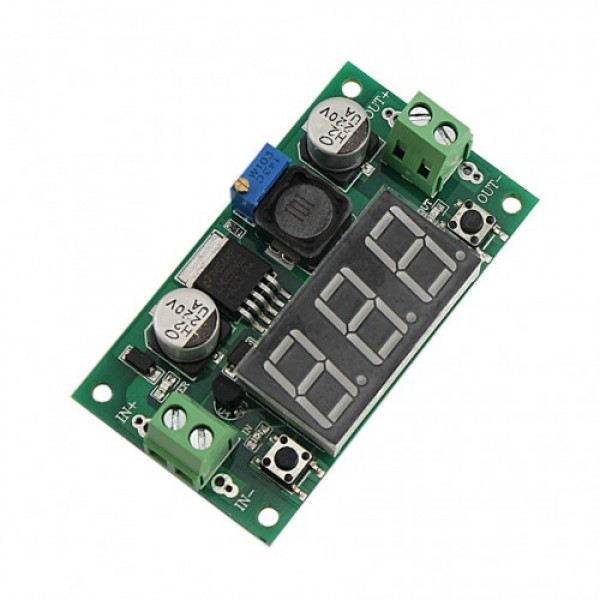

مبدل افزاینده DC به DC- ورودی4.5-32V ولت - خروجی6-35V ولت + نمایشگر ولتاژ XL6009
with power indicator
with a voltage meter display, using advanced microprocessor, voltmeter error of ± 0.05V , Range 0 ~ 40V . (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is 4V above)
مبدل افزاینده DC به DC- ورودی4.5-32V ولت - خروجی6-35V ولت + نمایشگر ولتاژ XL6009
Features:
with power indicator
with a voltage meter display, using advanced microprocessor, voltmeter error of ± 0.05V , Range 0 ~ 40V . (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is 4V above)
Touch on the right button to switch measuring input or output voltage, and has a light show which is being measured voltages, and save the settings , even then boot off
voltmeter can be closed when not needed touch of the button on the left side can be easily achieved
band terminals, no iron can also be easy to use, and retention wire connection point
Input voltage 4.0 ~ 40V ( input voltage must be higher than the output voltage of 1.5v or more. )
adjustable output voltage range of 1.25V ~ 37V continuously adjustable ( input voltage must be higher than the output voltage of 1.5V)
The maximum output current up to 3A , normal and stable operating current 2A
use 150KHz frequency internal oscillator, which belongs to the second generation of switching power voltage regulator, power consumption, high efficiency .
has overheat protection and short circuit protection function
