برد دیسکاوری STM32WB5MMG

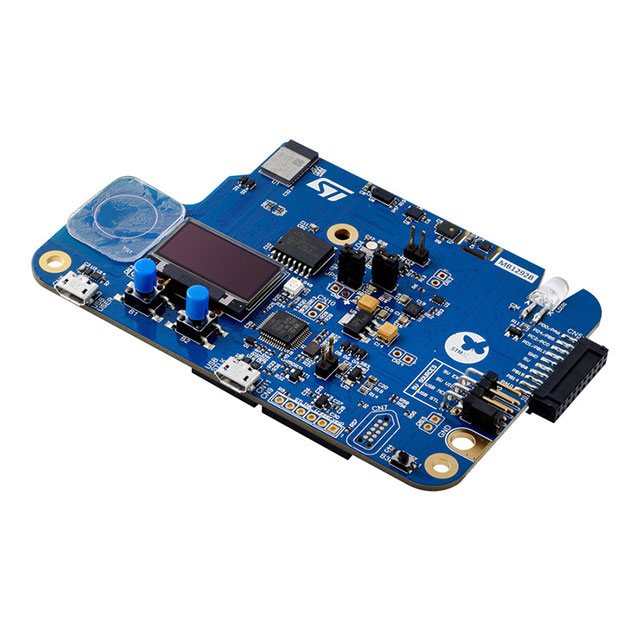

Discovery kit with STM32WB5MMG module
STM32WB5M Transceiver; 802.15.4 (Thread, ZigBee®), Bluetooth® 5.x 2.4GHz Evaluation Board
برد دیسکاوری STM32WB5MMG
Features
• STM32WB5MMG (1-Mbyte Flash memory, 256-Kbyte SRAM, in Module RF
package)
– Dual-core 32‑bit (Arm® Cortex®-M4 and dedicated M0+ CPU for real-time
radio layer)
– 2.4 GHz RF transceiver supporting Bluetooth® specification V5.2, 802.15.4
with Zigbee®, Thread®, and proprietary protocols
• 0.96-inch 128x64 OLED display
• 128-Mbit Quad-SPI NOR Flash Memory
• Temperature sensor
• Accelerometer/gyroscope sensor
• Time-of-Flight and gesture-detection sensor
• Digital microphone
• RGB LED
• Infrared LED
• 3 push-buttons (2 users and 1 reset) and 1 touch key button
• Board connectors:
– STMod+
– ARDUINO® Uno V3 expansion connector
– USB user with Micro-B connector
– TAG10 10-pin footprint
• Flexible power-supply options: ST-LINK/V2-1 USB connector, 5 V delivered by
ARDUINO® or external connector, USB charger, or USB power
• On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration
capability: Virtual COM port and debug port
• Comprehensive free software libraries and examples available with the
STM32CubeWB MCU Package
• Support of a wide choice of Integrated Development Environments (IDEs)
including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
